|ID||Category||Severity||Reproducibility||Date Submitted||Last Update|
|0005678||[JEDI VCL] 02 Installation||block||always||2011-10-10 22:30||2012-09-10 14:15|
|Status||resolved||Product Version||Daily / GIT|
|Summary||0005678: JVCL doesn't install for x64|
The 64-bit part of the install always fails with this message:
Generating packages for D16
Embarcadero Delphi for Win64 compiler version 23.0
Copyright (c) 1983,2011 Embarcadero Technologies, Inc.
JvCore.dpk(50) Fatal: E2213 Bad packaged unit format: d:\xe2\lib\Win32\release\rtl.dcp.System - Expected version: 23.0, Windows Unicode(x64) Found version: 23.0, Windows Unicode(x86)
|Tags||No tags attached.|
JVCL_SVN_install.png [^] (52,164 bytes) 2011-10-18 01:38
2011-10-18 - 02.08.32 ~ Capture.png [^] (39,033 bytes) 2011-10-18 02:09
2011-10-18 - 02.08.41 ~ Capture.png [^] (32,073 bytes) 2011-10-18 02:10
2011-10-18 - 19.32.37 ~ Capture.png [^] (16,474 bytes) 2011-10-18 19:41
2011-10-18 - 19.32.45 ~ Capture.png [^] (6,122 bytes) 2011-10-18 19:41
2011-10-18 - 19.32.51 ~ Capture.png [^] (15,917 bytes) 2011-10-18 19:42
2011-10-18 - 19.32.57 ~ Capture.png [^] (7,065 bytes) 2011-10-18 19:42
demo_fe.exe [^] (3,783,680 bytes) 2011-10-19 12:26
|Forgot to say, with Delphi XE2 (obvious anyway ;)|
something wrong with Delphi settings, global or per-project
it mixes 32-bit and 64-bit files into the same folder.
where did u got your files from ?
download daily/SVN package and try it, to me it installed easily.
Ormaybe i just checked and fixed the paths, i do not remember.
From the message "JvCore.dpk(50) Fatal: E2213 Bad packaged unit format: d:\xe2\lib\Win32\release\rtl.dcp.System " it is obvious that win32-folder was searched for pre-compiled files by win64-project. How d'You think, is it correct ?
got mine from daily.
Have you tried to compile a 64-bit project using any jvcl components?

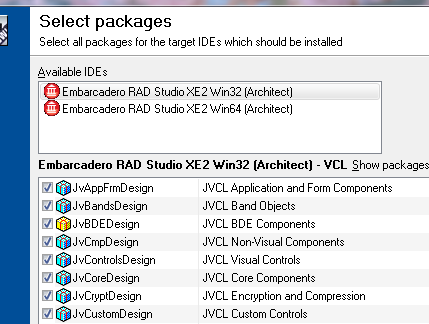

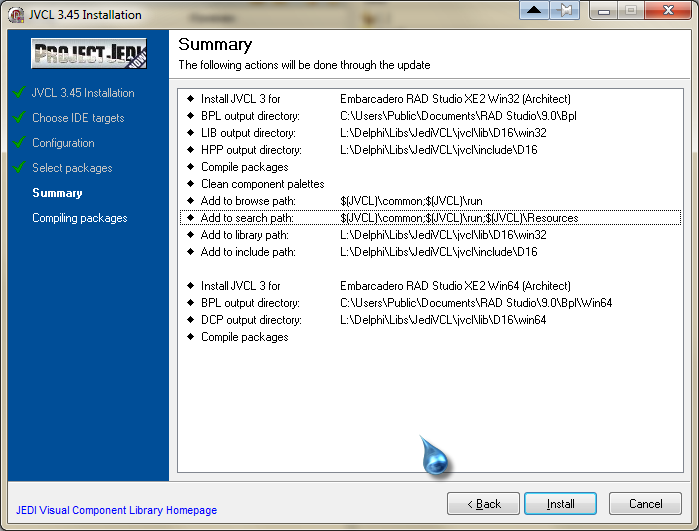

|settings of successful installation SVN checkout into XE2-Upd1|
that was Eclipse-posted screenshot
r ur settings the same ?
not any real project, i am currently deep into 32 bit :-)

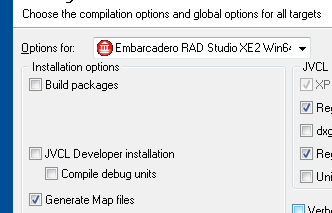

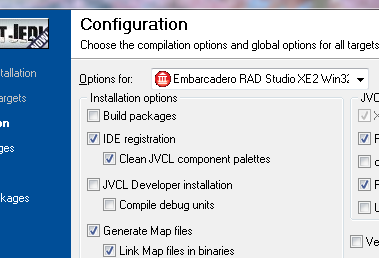

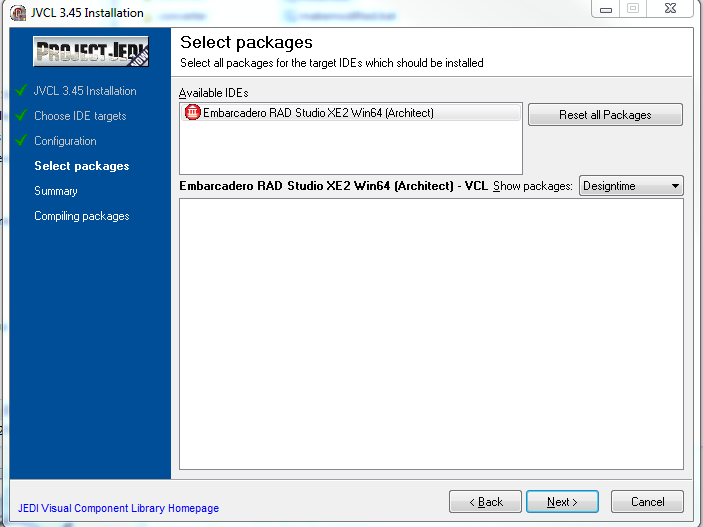

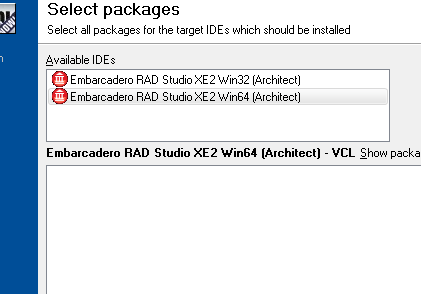

|Only get this in the installer when I pick 64 bit (attached screenshots).|
i selected both 32 and 64 in installer
also i installed update1 to delphi xe2
dunno if it help, but u may try to check Verbose - to see exact issued commands and generating debug DCUs
i attached my install settings, dunno if it makes any difference
The thing is, the installer doesn't even show the components to be installed when picking 64bit, as shown in the last 4 screenshots comparing vs 32 bit. Does it really compile well for you?
Try new vcl forms app, add 64bit release, drop a TJvSpeedbutton, try to run.
edited on: 2011-10-19 12:40
Would this file suit u ?
It has JvLabel, JvMemo, JvCheckbox and JvFileEditbox
> The thing is, the installer doesn't even show the components to be installed when picking 64bit
1) why do u pick 64 bit insstead of 32-bit plus 64-bit ?
2) do u select Design-time packages only instead of both runtime and designtime packages in installer ? your screenshot is cut off, but u can see the field on one of mine.
3) do u understand difference between designtime and runtime packages ? did u opened packages of any library to read thesources and see the differenes? did u read Delphi documentation about packages, what they intended to be and why they are split to runtime and designtime ones ?
4) in particular, do u understand that designtime packages do NOT contain any components ? while technically possible, it only makes sense for fake components like MCK for KOL. And that questions whether 64-bit components can be compiled and whether they can be installed into IDE are completely different questions.
5) did u read Delphi XE2 "What's New" section? In particular, what is different in 64-bit from 32-bit ? In particular, if 64-bit designtime packages are possible at all ?
> Does it really compile well for you?
there are particular incompatibilities. For example 0005688
but in general it works okay
Afterall u are not required to use installer
U can spend some time to learn Delphi ways - manually update search and output paths for IDE settings, manually open and compile all runtime DPK's, then manually open and compile and install all designtime DPK's
That way you'd be in full control of their settings and would simply fix attempt to use 32-bit DCU/DCP files for 64-bit DPK target
Or u can open Jedi Installer as a regular application and debug it line by line.
Though its code is more complex to understand, than simple opening and compiling one DPK after another.
|I have the same problem and can't find the error.|
The JVCLInstaller has code to protect itself from broken IDE library paths. This is done by calling the compiler with "-U$(BDS)\lib" to make it always the first directory the compiler looks into. Unfortunately this was broken with Delphi XE due to the new directory structure. The unit directory is now $(BDS)\lib\win32\release, but the Installer still adds the $(BDS)\lib. For Delphi XE this doesn't break the Installer (unless you removed the $(BDS)\lib\win32\release directory from your IDE library paths). But with Delphi XE2 there is also the Win64 platform and it now depends on how much your IDE library path is messed up.
I have fixed the Installer for Delphi XE and XE2 (and newer version until the directory structure will be changed again, but then you get an exception that I added).
Fixed in svn revision 13148.
