Summary0006191: JvListBox enhancements
Description1) there was no demo
2) it did not properly resized in runtime, when MultiLine (word wrap) was enabled

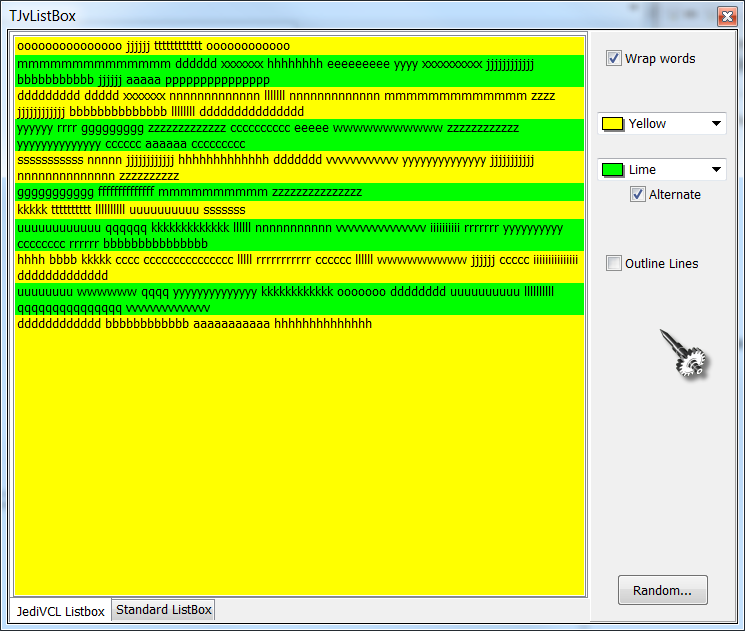

3) there was no way to visually separate items from one another, like in StringGrid or whatever
Additional Information1) This patch was made to replace DevEx QuantumTreeView (sic!). V.3. wassuccessfully dumbed down to fixed-size multiline 1D ListBox. But V.6.x would be a nightmare to dumb down!

2) Cannot make pull request: GitHub makes somethign cursed around CR/LF issued.

3) Cannot make pull request: XE2 package INC files were modified by installer (DPKs and INCs to be removed fro mGIT i think)
TagsNo tags attached.

Activities

2013-08-22 19:05



0002-JvListBox-alternating-items-color.patch (4,626 bytes)
From 49867d3c54b5b41d5ff224d4af2db7f35c16a9c6 Mon Sep 17 00:00:00 2001
From: the-Arioch <the_Arioch@nm.ru>
Date: Tue, 20 Aug 2013 21:23:41 +0400
Subject: [PATCH 2/3] JvListBox: alternating items color

---
 jvcl/run/JvListBox.pas | 47 +++++++++++++++++++++++++++++++++++++++++++----
 1 file changed, 43 insertions(+), 4 deletions(-)

diff --git a/jvcl/run/JvListBox.pas b/jvcl/run/JvListBox.pas
index c8b9d5f..6a9ae40 100644
--- a/jvcl/run/JvListBox.pas
+++ b/jvcl/run/JvListBox.pas
@@ -165,6 +165,8 @@ type
     FProviderIsActive: Boolean;
     FProviderToggle: Boolean;
     FMoving: Boolean;
+    FColorAlternate: TColor;
+    FColorBeforeChange:TColor;

     procedure WMVScroll(var Msg: TWMVScroll); message WM_VSCROLL;
     procedure WMHScroll(var Msg: TWMHScroll); message WM_HSCROLL;
@@ -196,7 +198,10 @@ type
     procedure SetFlat(const Value: Boolean);
     function GetParentFlat: Boolean;
     procedure SetParentFlat(const Value: Boolean);
+    procedure SetColorAlternate(const Value: TColor);
+    function IsColorAlternateAlternate: Boolean;
   protected
+    procedure ColorChanged; override;
     procedure FontChanged; override;
     function GetItemsClass: TJvListBoxStringsClass; virtual;
     procedure BeginRedraw;
@@ -300,6 +305,7 @@ type
     property SelectedColor: TColor read FSelectedColor write SetSelectedColor default clHighlight;
     property SelectedTextColor: TColor read FSelectedTextColor write SetSelectedTextColor default clHighlightText;
     property DisabledTextColor: TColor read FDisabledTextColor write SetDisabledTextColor default clGrayText;
+    property ColorAlternate: TColor read FColorAlternate write SetColorAlternate stored IsColorAlternateAlternate;
     property ShowFocusRect: Boolean read FShowFocusRect write SetShowFocusRect default True;
     property Background: TJvListBoxBackground read FBackground write SetBackground;
     property Flat: Boolean read GetFlat write SetFlat default False;
@@ -333,6 +339,7 @@ type
     property Items;

     property MultiLine;
+    property ColorAlternate;
     property SelectedColor;
     property SelectedTextColor;
     property DisabledTextColor;
@@ -747,6 +754,8 @@ begin
   FSelectedColor := clHighlight;
   FSelectedTextColor := clHighlightText;
   FDisabledTextColor := clGrayText;
+  FColorAlternate  := Color;
+  FColorBeforeChange := Color;
   FShowFocusRect := True;
   //  Style := lbOwnerDrawVariable;

@@ -832,6 +841,9 @@ begin
       begin
         Canvas.Brush.Color := FSelectedColor;
         Canvas.Font.Color := FSelectedTextColor;
+      end else begin
+        if Odd(itemID) and (Color <> FColorAlternate) then
+           Canvas.Brush.Color := FColorAlternate;
       end;
       if (([odDisabled, odGrayed] * State) <> []) or not Enabled then
         Canvas.Font.Color := FDisabledTextColor;
@@ -1043,8 +1055,8 @@ var
   ActualRect: TRect;
   AText: string;
 begin
-   if csDestroying in ComponentState then
-    Exit;
+  if csDestroying in ComponentState then
+     Exit;
  // JvBMPListBox:
   // draw text transparently
   if ScrollBars in [ssHorizontal, ssBoth] then
@@ -1074,8 +1086,13 @@ begin

   if Index < ItemsShowing.Count then
   begin
-    if not Background.DoDraw then
-      Canvas.FillRect(ActualRect);
+    if not Background.DoDraw then begin
+       if (ColorAlternate <> Color) then
+          if Odd(Index)
+             then Canvas.Brush.Color := ColorAlternate
+             else Canvas.Brush.Color := Color;
+       Canvas.FillRect(ActualRect);
+    end;

     if FMultiline then
       Flags := DrawTextBiDiModeFlags(DT_WORDBREAK or DT_NOPREFIX or
@@ -1276,6 +1293,15 @@ begin
   Windows.InvalidateRect(Handle, @R, True);
 end;

+procedure TJvCustomListBox.SetColorAlternate(const Value: TColor);
+begin
+  if FColorAlternate <> Value then
+  begin
+    FColorAlternate := Value;
+    Invalidate;
+  end;
+end;
+
 procedure TJvCustomListBox.SetConsumerService(Value: TJvDataConsumer);
 begin
 end;
@@ -1299,6 +1325,14 @@ begin
     TJvListBoxStrings(Items).MakeListInternal;
 end;

+procedure TJvCustomListBox.ColorChanged;
+begin
+  inherited;
+  if FColorBeforeChange = FColorAlternate
+     then FColorAlternate := Color;
+  FColorBeforeChange := Color;
+end;
+
 procedure TJvCustomListBox.ConsumerServiceChanged(Sender: TJvDataConsumer;
   Reason: TJvDataConsumerChangeReason);
 begin
@@ -1350,6 +1384,11 @@ begin
   end;
 end;

+function TJvCustomListBox.IsColorAlternateAlternate: Boolean;
+begin
+   Result := Color <> ColorAlternate;
+end;
+
 function TJvCustomListBox.IsProviderSelected: Boolean;
 begin
   Result := FProviderIsActive;
--
1.8.3.msysgit.0

2013-08-22 19:05



0003-TJvListbox-1-Added-two-ways-to-visually-distinguish-.patch (45,401 bytes)
From 12ec04e21b75617b992324464ed878cd317f8bc2 Mon Sep 17 00:00:00 2001
From: the-Arioch <the_Arioch@nm.ru>
Date: Thu, 22 Aug 2013 20:46:31 +0400

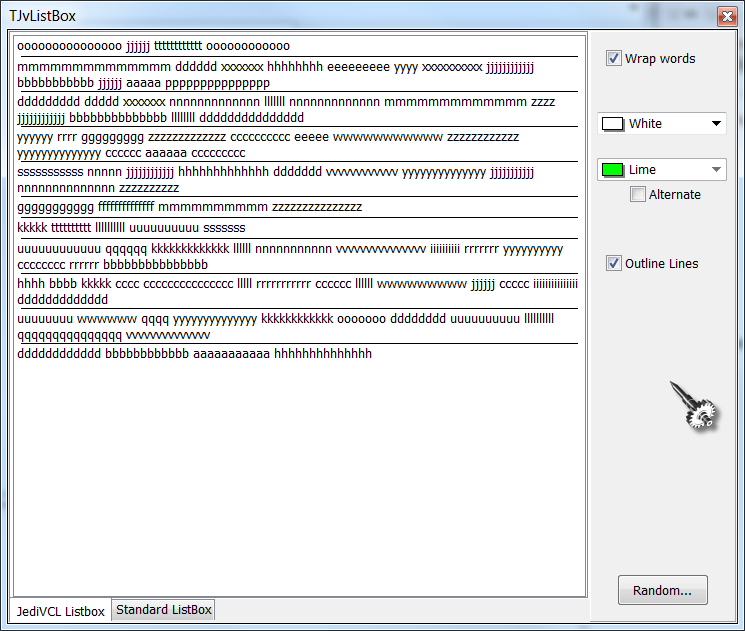

Subject: [PATCH 3/3] TJvListbox: 1) Added two ways to visually distinguish
 adjacent items. 2) Hopefully redraws correctly when sizing in runtime (Was
 broken on MultiLine) 3) Demo added

Broken: does not "sparse" items when separators added.
Either something wrong in XE2 or in my understanding of GDI
---
 jvcl/examples/JvListComb/ListBoxFormU.dfm      | 255 ++++++++++++++++++
 jvcl/examples/JvListComb/ListBoxFormU.pas      | 123 +++++++++
 jvcl/examples/JvListComb/ListCombDemo.dpr      |   4 +-
 jvcl/examples/JvListComb/ListCombDemo.res      | Bin 876 -> 2040 bytes
 jvcl/examples/JvListComb/ListCombMainFormU.dfm | 348 ++++++++++---------------
 jvcl/run/JvListBox.pas                         | 223 ++++++++++++++--
 6 files changed, 719 insertions(+), 234 deletions(-)
 create mode 100644 jvcl/examples/JvListComb/ListBoxFormU.dfm
 create mode 100644 jvcl/examples/JvListComb/ListBoxFormU.pas

diff --git a/jvcl/examples/JvListComb/ListBoxFormU.dfm b/jvcl/examples/JvListComb/ListBoxFormU.dfm
new file mode 100644
index 0000000..cf6cfe7
--- /dev/null
+++ b/jvcl/examples/JvListComb/ListBoxFormU.dfm
@@ -0,0 +1,255 @@
+object fmListBox: TfmListBox
+  Left = 0
+  Top = 0
+  BorderStyle = bsSizeToolWin
+  Caption = 'TJvListBox'
+  ClientHeight = 490
+  ClientWidth = 548
+  Color = clBtnFace
+  Font.Charset = DEFAULT_CHARSET
+  Font.Color = clWindowText
+  Font.Height = -13
+  Font.Name = 'Tahoma'
+  Font.Style = []
+  OldCreateOrder = False
+  Position = poScreenCenter
+  Visible = True
+  OnCreate = FormCreate
+  OnShow = FormShow
+  PixelsPerInch = 120
+  TextHeight = 16
+  object pnl1: TPanel
+    Left = 403
+    Top = 0
+    Width = 145
+    Height = 490
+    Align = alRight
+    TabOrder = 0
+    DesignSize = (
+      145
+      490)
+    object btnTextGen: TButton
+      Left = 27
+      Top = 443
+      Width = 92
+      Height = 31
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
+      Margins.Bottom = 4
+      Anchors = [akRight, akBottom]
+      Caption = 'Random...'
+      TabOrder = 0
+      OnClick = btnTextGenClick
+    end
+    object chkWW: TCheckBox
+      Left = 16
+      Top = 19
+      Width = 108
+      Height = 17
+      Caption = 'Wrap words'
+      TabOrder = 1
+      OnClick = chkWWClick
+    end
+    object cbcMain: TJvColorComboBox
+      Left = 7
+      Top = 81
+      Width = 130
+      Height = 23
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
+      Margins.Bottom = 4
+      Anchors = [akLeft, akTop, akRight]
+      ColorNameMap.Strings = (
+        'clBlack=Black'
+        'clMaroon=Maroon'
+        'clGreen=Green'
+        'clOlive=Olive green'
+        'clNavy=Navy blue'
+        'clPurple=Purple'
+        'clTeal=Teal'
+        'clGray=Gray'
+        'clSilver=Silver'
+        'clRed=Red'
+        'clLime=Lime'
+        'clYellow=Yellow'
+        'clBlue=Blue'
+        'clFuchsia=Fuchsia'
+        'clAqua=Aqua'
+        'clWhite=White'
+        'clMoneyGreen=Money green'
+        'clSkyBlue=Sky blue'
+        'clCream=Cream'
+        'clMedGray=Medium gray'
+        'clScrollBar=Scrollbar'
+        'clBackground=Desktop background'
+        'clActiveCaption=Active window title bar'
+        'clInactiveCaption=Inactive window title bar'
+        'clMenu=Menu background'
+        'clWindow=Window background'
+        'clWindowFrame=Window frame'
+        'clMenuText=Menu text'
+        'clWindowText=Window text'
+        'clCaptionText=Active window title bar text'
+        'clActiveBorder=Active window border'
+        'clInactiveBorder=Inactive window border'
+        'clAppWorkSpace=Application workspace'
+        'clHighlight=Selection background'
+        'clHighlightText=Selection text'
+        'clBtnFace=Button face'
+        'clBtnShadow=Button shadow'
+        'clGrayText=Dimmed text'
+        'clBtnText=Button text'
+        'clInactiveCaptionText=Inactive window title bar text'
+        'clBtnHighlight=Button highlight'
+        'cl3DDkShadow=Dark shadow 3D elements'
+        'cl3DLight=Highlight 3D elements'
+        'clInfoText=Tooltip text'
+        'clInfoBk=Tooltip background'
+        'clGradientActiveCaption=Gradient Active Caption'
+        'clGradientInactiveCaption=Gradient Inactive Caption'
+        'clHotLight=Hot Light'
+        'clMenuBar=Menu Bar'
+        'clMenuHighlight=Menu Highlight')
+      ColorValue = clWhite
+      ColorDialogText = '(Custom...)'
+      DroppedDownWidth = 130
+      NewColorText = 'New Color '
+      Options = [coText, coCustomColors]
+      TabOrder = 2
+      OnChange = cbcMainChange
+    end
+    object cbcAlt: TJvColorComboBox
+      Left = 7
+      Top = 126
+      Width = 130
+      Height = 23
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
+      Margins.Bottom = 4
+      Anchors = [akLeft, akTop, akRight]
+      ColorNameMap.Strings = (
+        'clBlack=Black'
+        'clMaroon=Maroon'
+        'clGreen=Green'
+        'clOlive=Olive green'
+        'clNavy=Navy blue'
+        'clPurple=Purple'
+        'clTeal=Teal'
+        'clGray=Gray'
+        'clSilver=Silver'
+        'clRed=Red'
+        'clLime=Lime'
+        'clYellow=Yellow'
+        'clBlue=Blue'
+        'clFuchsia=Fuchsia'
+        'clAqua=Aqua'
+        'clWhite=White'
+        'clMoneyGreen=Money green'
+        'clSkyBlue=Sky blue'
+        'clCream=Cream'
+        'clMedGray=Medium gray'
+        'clScrollBar=Scrollbar'
+        'clBackground=Desktop background'
+        'clActiveCaption=Active window title bar'
+        'clInactiveCaption=Inactive window title bar'
+        'clMenu=Menu background'
+        'clWindow=Window background'
+        'clWindowFrame=Window frame'
+        'clMenuText=Menu text'
+        'clWindowText=Window text'
+        'clCaptionText=Active window title bar text'
+        'clActiveBorder=Active window border'
+        'clInactiveBorder=Inactive window border'
+        'clAppWorkSpace=Application workspace'
+        'clHighlight=Selection background'
+        'clHighlightText=Selection text'
+        'clBtnFace=Button face'
+        'clBtnShadow=Button shadow'
+        'clGrayText=Dimmed text'
+        'clBtnText=Button text'
+        'clInactiveCaptionText=Inactive window title bar text'
+        'clBtnHighlight=Button highlight'
+        'cl3DDkShadow=Dark shadow 3D elements'
+        'cl3DLight=Highlight 3D elements'
+        'clInfoText=Tooltip text'
+        'clInfoBk=Tooltip background'
+        'clGradientActiveCaption=Gradient Active Caption'
+        'clGradientInactiveCaption=Gradient Inactive Caption'
+        'clHotLight=Hot Light'
+        'clMenuBar=Menu Bar'
+        'clMenuHighlight=Menu Highlight')
+      ColorValue = clWhite
+      ColorDialogText = '(Custom...)'
+      DroppedDownWidth = 130
+      NewColorText = 'New Color '
+      Options = [coText, coCustomColors]
+      TabOrder = 3
+      OnChange = cbcAltChange
+    end
+    object chkAlt: TCheckBox
+      Left = 40
+      Top = 155
+      Width = 97
+      Height = 17
+      Caption = 'Alternate'
+      TabOrder = 4
+      OnClick = chkAltClick
+    end
+    object chkOutline: TCheckBox
+      Left = 16
+      Top = 224
+      Width = 97
+      Height = 17
+      Caption = 'chkOutline'
+      TabOrder = 5
+      OnClick = chkOutlineClick
+    end
+  end
+  object pgcLBs: TPageControl
+    Left = 0
+    Top = 0
+    Width = 403
+    Height = 490
+    ActivePage = tsJVCL
+    Align = alClient
+    TabOrder = 1
+    TabPosition = tpBottom
+    object tsJVCL: TTabSheet
+      Caption = 'JediVCL Listbox'
+      ExplicitLeft = 0
+      ExplicitTop = 0
+      ExplicitWidth = 0
+      ExplicitHeight = 0
+      object lst1: TJvListBox
+        Left = 0
+        Top = 0
+        Width = 395
+        Height = 461
+        Align = alClient
+        IntegralHeight = True
+        Background.FillMode = bfmTile
+        Background.Visible = False
+        TabOrder = 0
+      end
+    end
+    object tsVCL: TTabSheet
+      Caption = 'Standard ListBox'
+      ImageIndex = 1
+      ExplicitLeft = 0
+      ExplicitTop = 0
+      ExplicitWidth = 0
+      ExplicitHeight = 0
+      object lst2: TListBox
+        Left = 0
+        Top = 0
+        Width = 395
+        Height = 461
+        Align = alClient
+        TabOrder = 0
+      end
+    end
+  end
+end
diff --git a/jvcl/examples/JvListComb/ListBoxFormU.pas b/jvcl/examples/JvListComb/ListBoxFormU.pas
new file mode 100644
index 0000000..7e308b9
--- /dev/null
+++ b/jvcl/examples/JvListComb/ListBoxFormU.pas
@@ -0,0 +1,123 @@
+unit ListBoxFormU;
+
+interface
+
+uses
+  Winapi.Windows, Winapi.Messages, System.SysUtils, System.Variants, System.Classes, Vcl.Graphics,
+  Vcl.Controls, Vcl.Forms, Vcl.Dialogs, Vcl.StdCtrls, JvExStdCtrls, JvListBox,
+  Vcl.ExtCtrls, JvCombobox, JvColorCombo, Vcl.ComCtrls;
+
+type
+  TfmListBox = class(TForm)
+    pnl1: TPanel;
+    lst1: TJvListBox;
+    btnTextGen: TButton;
+    chkWW: TCheckBox;
+    cbcMain: TJvColorComboBox;
+    cbcAlt: TJvColorComboBox;
+    chkAlt: TCheckBox;
+    chkOutline: TCheckBox;
+    pgcLBs: TPageControl;
+    tsJVCL: TTabSheet;
+    tsVCL: TTabSheet;
+    lst2: TListBox;
+    procedure btnTextGenClick(Sender: TObject);
+    procedure chkWWClick(Sender: TObject);
+    procedure FormShow(Sender: TObject);
+    procedure chkAltClick(Sender: TObject);
+    procedure cbcAltChange(Sender: TObject);
+    procedure cbcMainChange(Sender: TObject);
+    procedure chkOutlineClick(Sender: TObject);
+    procedure FormCreate(Sender: TObject);
+  private
+    { Private declarations }
+  public
+    { Public declarations }
+  end;
+
+var
+  fmListBox: TfmListBox;
+
+implementation
+
+{$R *.dfm}
+
+procedure TfmListBox.btnTextGenClick(Sender: TObject);
+var ln_l, wd_l, L_cnt: integer; c: char;
+    sb: TStringBuilder; sl: TStrings;
+const lines = 11;
+begin
+  sl := TStringList.Create;
+  try
+    sb := TStringBuilder.Create;
+    try
+      for L_cnt := 1 to lines do begin
+          sb.Clear; // new line
+          ln_l := random(100) + 30; // line length
+          while sb.Length < ln_l do begin
+            wd_l := random(12) + 4; // word length
+            c := Char(random(ord('Z')-ord('A')+1) + ord('a') );
+
+            sb.Append(StringOfChar(c, wd_l));
+            sb.Append(' ');
+          end;
+          sl.Add(Trim(sb.ToString));
+      end;
+    finally
+      sb.Free;
+    end;
+
+    lst1.Items := sl;
+    lst2.Items := sl;
+  finally
+    sl.Free;
+  end;
+end;
+
+procedure TfmListBox.chkWWClick(Sender: TObject);
+begin
+  lst1.MultiLine := chkWW.Checked;
+end;
+
+procedure TfmListBox.FormCreate(Sender: TObject);
+begin
+  lst1.ColorAlternate := clLime;
+  lst1.Color := clYellow;
+end;
+
+procedure TfmListBox.FormShow(Sender: TObject);
+begin
+  chkWW.Checked := lst1.MultiLine;
+
+  cbcMain.ColorValue := lst1.Color;
+  cbcAlt.ColorValue  := lst1.ColorAlternate;
+
+  chkAlt.Checked := lst1.ColorAlternate <> lst1.Color;
+  cbcAlt.Enabled := chkAlt.Checked;
+end;
+
+procedure TfmListBox.chkAltClick(Sender: TObject);
+begin
+  if chkAlt.Checked
+     then lst1.ColorAlternate := cbcAlt.ColorValue
+     else lst1.ColorAlternate := lst1.Color;
+
+  cbcAlt.Enabled := chkAlt.Checked;
+end;
+
+procedure TfmListBox.chkOutlineClick(Sender: TObject);
+begin
+  lst1.SeparateItems := chkOutline.Checked;
+end;
+
+procedure TfmListBox.cbcAltChange(Sender: TObject);
+begin
+  lst1.ColorAlternate := cbcAlt.ColorValue
+end;
+
+procedure TfmListBox.cbcMainChange(Sender: TObject);
+begin
+  lst1.Color := cbcMain.ColorValue
+end;
+
+end.
diff --git a/jvcl/examples/JvListComb/ListCombDemo.dpr b/jvcl/examples/JvListComb/ListCombDemo.dpr
index b5a1a8f..8f810b6 100644
--- a/jvcl/examples/JvListComb/ListCombDemo.dpr
+++ b/jvcl/examples/JvListComb/ListCombDemo.dpr
@@ -2,12 +2,14 @@ program ListCombDemo;

 uses
   Forms,
-  ListCombMainFormU in 'ListCombMainFormU.pas' {ListCombMainForm};
+  ListCombMainFormU in 'ListCombMainFormU.pas' {ListCombMainForm},
+  ListBoxFormU in 'ListBoxFormU.pas' {fmListBox};

 {$R *.RES}

 begin
   Application.Initialize;
   Application.CreateForm(TListCombMainForm, ListCombMainForm);
+  Application.CreateForm(TfmListBox, fmListBox);
   Application.Run;
 end.
diff --git a/jvcl/examples/JvListComb/ListCombDemo.res b/jvcl/examples/JvListComb/ListCombDemo.res
index 55f874204136d6cde31b105890029f4503c878e3..4073f282f8da7ea6ff39b18d368841651c26411a 100644
GIT binary patch
literal 2040
zcma)7O^@3|7=BHnm{x-B3JyI{%i@5LHXm%d&^95vTDmBrg=#k}N8)wHsTIc#9w*so
zk=Ro%EAbon4=ZgWSx7l?;8*m(fg3&cP_21p{1K-G#3b){p7(p+@#`TX(m+uZ6P9aZ
zS4rg?&;h`x(v4!Ow5!yyJf<W19`i#w#Hvl-(AU6i%m-MD@oVv~Ya(GE`$(THDJ2pP
zQ%S<2UnK8{0`kcwm-_H#lS2%iU9!l7{70!%r8=^@2dX0nkx`Z2hQCz*7&bm}SbMM(
zqef-uq(rb0`cI(cQIE!CBI@f_uiJb9KMJ%ASf!CxnGt;`ch!N^Kva&*4R~GUaHIG~
z@z1x2H28_4LRR06ja7X=f=tMFL5lQ;1#JF#oD<<s=jZVQGnSxpS}vCmh(i{SD1Km$
z&s{L%vAMaCF6HyTap7n&%B!!iD%mT1RwbH}z_EdPNrmbG@PuLp6s|0Rt=Lq(EQNE4
zyNSXiTu7WKOv5mYaaYDtGi*s*8iW_IJjRxl__L&gk!20yc$Os`09z6d<`S1Oe6@zp
z28%WQvoM_J?SU5pQ(}J_E<(8@U<LV1FRm^=g;*_FUFE&)XPdX@)}_!#Krnc%H19q@
zv1CGBWfN@T&td~;2rW_{h?2;R;T6k*RFENMa$sSobO5Ogp41e~sT932MN2ix=*68V
z0<}ONkQ)6=O7t7vn&(76y&!5ObO%__t>wRvkfj706;yahWV|AJc}>cz=)7<pJ--!+
z@ji*36|d&I^qBVKx1&w_@=F4?9MxQ3h;C3w(~7byL>DRad)7<0vtG)7s~WA-p`%Th
z&u!0b>a}uJ*O+U1J=^U!^=~@|Tc7C~4-B_wIG)Rz`iybC_4zwD8wTfWc;d`7IB<DW
zAN%foZa!s0gKrIO)AzV%1zV;!yl?Pfc~aB0q2byV<H2!08eC~wqsK<f?IG|?;v6T~
zOX4H~h|<Vy7zB1O6CUCb%tlCYYP;K?=qs*k48eVz=2ZU9c6;8Gm-oHl&~vx;JvZ<@
zhvzJ^dhC>|;+GSR#wU(#e#K@TZ@^HooxAt$p6t|X^}1<VwVstzbqu#ZHu{MDagICk
zJ(F?n`Fp<k)DD;#jD4w6Nw;1}tFgZKM#fL7)Cl}B58AHf{m(Pl*3%H2nPVTNTNTx3
zKa6oUtoOvXC$_`-jAugBJQF`Wg=v77<q?}OXH{fPa|ENQ8@%mKP#ZtDXH6U1d#2cS
zQ@0F<Gd<m`IJZV6^ZrKgMrAG4MkU)bvTIb*R{<ct0vhOwD7uMT>k&GpBk$TnbWaE9
TkiNuC*uia_^iJ;17WeGmwe;2N

delta 17
Ycmeyt|AuXX!sZ4>9cD&>$!l5U0XuL7fdBvi

diff --git a/jvcl/examples/JvListComb/ListCombMainFormU.dfm b/jvcl/examples/JvListComb/ListCombMainFormU.dfm
index b0bd663..9bf71b2 100644
--- a/jvcl/examples/JvListComb/ListCombMainFormU.dfm
+++ b/jvcl/examples/JvListComb/ListCombMainFormU.dfm
@@ -1,33 +1,41 @@
 object ListCombMainForm: TListCombMainForm
   Left = 276
   Top = 174
-  AutoScroll = False
   Caption = 'JvComboBox sample'
-  ClientHeight = 456
-  ClientWidth = 564
+  ClientHeight = 561
+  ClientWidth = 694
   Color = clBtnFace
   Font.Charset = DEFAULT_CHARSET
   Font.Color = clWindowText
-  Font.Height = -11
+  Font.Height = -14
   Font.Name = 'MS Sans Serif'
   Font.Style = []
   OldCreateOrder = True
   OnCreate = FormCreate
-  PixelsPerInch = 96
-  TextHeight = 13
+  PixelsPerInch = 120
+  TextHeight = 16
   object Splitter1: TSplitter
-    Left = 283
-    Top = 75
-    Width = 5
-    Height = 381
-    Cursor = crHSplit
+    Left = 348
+    Top = 86
+    Width = 6
+    Height = 475
+    Margins.Left = 4
+    Margins.Top = 4
+    Margins.Right = 4
+    Margins.Bottom = 4
     Align = alRight
+    ExplicitTop = 92
+    ExplicitHeight = 469
   end
   object Panel2: TPanel
     Left = 0
-    Top = 75
-    Width = 283
-    Height = 381
+    Top = 86
+    Width = 348
+    Height = 475
+    Margins.Left = 4
+    Margins.Top = 4
+    Margins.Right = 4
+    Margins.Bottom = 4
     Align = alClient
     BevelOuter = bvNone
     BorderWidth = 2
@@ -36,12 +44,16 @@ object ListCombMainForm: TListCombMainForm
     object JvListBox1: TJvImageListBox
       Left = 2
       Top = 2
-      Width = 279
-      Height = 377
+      Width = 344
+      Height = 471
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
+      Margins.Bottom = 4
       Align = alClient
       Font.Charset = DEFAULT_CHARSET
       Font.Color = clWindowText
-      Font.Height = -11
+      Font.Height = -15
       Font.Name = 'MS Sans Serif'
       Font.Style = []
       Items = <>
@@ -49,54 +61,78 @@ object ListCombMainForm: TListCombMainForm
       ImageWidth = 0
       ButtonStyle = fsLight
       Images = ImageList1
-      ItemHeight = 17
+      ItemHeight = 20
       ParentFont = False
       TabOrder = 0
     end
   end
   object Panel3: TPanel
-    Left = 288
-    Top = 75
-    Width = 276
-    Height = 381
+    Left = 354
+    Top = 86
+    Width = 340
+    Height = 475
+    Margins.Left = 4
+    Margins.Top = 4
+    Margins.Right = 4
+    Margins.Bottom = 4
     Align = alRight
     BevelOuter = bvNone
     TabOrder = 1
+    DesignSize = (
+      340
+      475)
     object Label1: TLabel
-      Left = 66
-      Top = 84
-      Width = 75
-      Height = 13
+      Left = 81
+      Top = 103
+      Width = 94
+      Height = 16
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
       Caption = 'a JvColorButton'
     end
     object Label2: TLabel
-      Left = 168
-      Top = 21
-      Width = 95
-      Height = 13
+      Left = 207
+      Top = 26
+      Width = 124
+      Height = 16
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
       Caption = 'a JvColorComboBox'
     end
     object Label3: TLabel
-      Left = 168
-      Top = 52
-      Width = 92
-      Height = 13
+      Left = 207
+      Top = 64
+      Width = 118
+      Height = 16
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
       Caption = 'a JvFontComboBox'
     end
     object Button2: TButton
-      Left = 16
-      Top = 124
-      Width = 75
-      Height = 25
+      Left = 20
+      Top = 153
+      Width = 92
+      Height = 30
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
+      Margins.Bottom = 4
       Caption = 'Toggle justify'
       TabOrder = 0
       OnClick = Button2Click
     end
     object CheckBox1: TCheckBox
-      Left = 16
-      Top = 104
-      Width = 97
-      Height = 17
+      Left = 20
+      Top = 128
+      Width = 119
+      Height = 21
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
+      Margins.Bottom = 4
       Caption = 'Images'
       Checked = True
       State = cbChecked
@@ -104,42 +140,62 @@ object ListCombMainForm: TListCombMainForm
       OnClick = CheckBox1Click
     end
     object JvColorComboBox1: TJvColorComboBox
-      Left = 16
-      Top = 16
-      Width = 145
-      Height = 22
+      Left = 20
+      Top = 20
+      Width = 178
+      Height = 23
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
+      Margins.Bottom = 4
       ColorValue = clWhite
       ColorDialogText = '(Custom...)'
-      DroppedDownWidth = 145
+      DroppedDownWidth = 178
       NewColorText = 'New Color '
       Options = [coText, coCustomColors]
       TabOrder = 2
       OnChange = JvColorComboBox1Change
     end
     object JvFontComboBox1: TJvFontComboBox
-      Left = 16
-      Top = 48
-      Width = 145
-      Height = 22
-      DroppedDownWidth = 145
-      FontName = 'Arial'
+      Left = 20
+      Top = 59
+      Width = 178
+      Height = 23
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
+      Margins.Bottom = 4
+      DroppedDownWidth = 178
+      MaxMRUCount = 0
+      FontName = '@Arial Unicode MS'
       ItemIndex = 0
       Sorted = True
       TabOrder = 3
       OnChange = JvFontComboBox1Change
     end
     object JvColorButton1: TJvColorButton
-      Left = 16
-      Top = 80
+      Left = 20
+      Top = 98
+      Width = 51
+      Height = 26
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
+      Margins.Bottom = 4
       OtherCaption = '&Other...'
       Options = []
       OnChange = JvColorButton1Change
+      TabOrder = 4
     end
     object Button1: TButton
-      Left = 16
-      Top = 347
-      Width = 75
-      Height = 25
+      Left = 20
+      Top = 427
+      Width = 92
+      Height = 31
+      Margins.Left = 4
+      Margins.Top = 4
+      Margins.Right = 4
+      Margins.Bottom = 4
       Anchors = [akLeft, akBottom]
       Caption = 'Load...'
       TabOrder = 5
@@ -148,37 +204,47 @@ object ListCombMainForm: TListCombMainForm
   end
   object JvComboBox1: TJvImageComboBox
     Left = 0
-    Top = 49
-    Width = 564
+    Top = 60
+    Width = 694
     Height = 26
+    Margins.Left = 4
+    Margins.Top = 4
+    Margins.Right = 4
+    Margins.Bottom = 4
+    Style = csOwnerDrawVariable
     Align = alTop
-    DropDownCount = 10
-    ImageHeight = 0
-    ImageWidth = 0
-    Items = <>
-    ItemIndex = -1
-    DroppedWidth = 564
     ButtonFrame = True
     ButtonStyle = fsDark
+    DroppedWidth = 694
+    DropDownCount = 10
     Font.Charset = DEFAULT_CHARSET
     Font.Color = clBlack
-    Font.Height = -11
+    Font.Height = -15
     Font.Name = 'MS Sans Serif'
     Font.Style = []
+    ImageHeight = 0
+    ImageWidth = 0
     Images = ImageList1
+    ItemHeight = 20
+    ItemIndex = -1
     ParentFont = False
     TabOrder = 2
+    Items = <>
   end
   object PanelTop: TPanel
     Left = 0
     Top = 0
-    Width = 564
-    Height = 49
+    Width = 694
+    Height = 60
+    Margins.Left = 4
+    Margins.Top = 4
+    Margins.Right = 4
+    Margins.Bottom = 4
     Align = alTop
     Caption = 'Here you can see some Combo and List Boxes from the JVCL'
     Font.Charset = DEFAULT_CHARSET
     Font.Color = clWindowText
-    Font.Height = -13
+    Font.Height = -17
     Font.Name = 'MS Sans Serif'
     Font.Style = [fsBold]
     ParentFont = False
@@ -189,136 +255,8 @@ object ListCombMainForm: TListCombMainForm
     Left = 88
     Top = 72
     Bitmap = {
-      494C01011F002200040010001000FFFFFFFFFF10FFFFFFFFFFFFFFFF424D3600
-      0000000000003600000028000000400000009000000001002000000000000090
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
+      494C01011F002100040010001000FFFFFFFFFF10FFFFFFFFFFFFFFFF424D3600
+      0000000000003600000028000000400000008000000001002000000000000080
       0000000000000000000000000000000000008400840000000000840084008400
       8400000000000000000000000000000000000000000000000000000000000000
       0000000000000000000000000000000000000000000000000000000000000000
@@ -1344,12 +1282,8 @@ object ListCombMainForm: TListCombMainForm
       0000000000000000000000000000000000000000000000000000000000008400
       0000840000008400000084000000000000000000000000000000000000000000
       000000000000000000000000000000000000424D3E000000000000003E000000
-      2800000040000000900000000100010000000000800400000000000000000000
-      000000000000000000000000FFFFFF0000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      0000000000000000000000000000000000000000000000000000000000000000
-      000000000000000000000000000000004EFFFFFF9FE30000007FE01F00010000
+      2800000040000000800000000100010000000000000400000000000000000000
+      000000000000000000000000FFFFFF004EFFFFFF9FE30000007FE01F00010000
       A23FE04700040000F69FF01300020000FF4FF00105C00000FF4FF80086C40000
       FFA7F80080010000FFA7900080010000FFD30000C0010000FFD30000C0030000
       FFA90000F0030000FFA99000F0010000FFD4F800F9610000FFD4F800F8F00000
diff --git a/jvcl/run/JvListBox.pas b/jvcl/run/JvListBox.pas
index 6a9ae40..b154eee 100644
--- a/jvcl/run/JvListBox.pas
+++ b/jvcl/run/JvListBox.pas
@@ -167,6 +167,9 @@ type
     FMoving: Boolean;
     FColorAlternate: TColor;
     FColorBeforeChange:TColor;
+    FSeparateItems: Boolean;
+    FItemsHeightValid: Boolean;
+    FItemsHeightCache: array of integer;

     procedure WMVScroll(var Msg: TWMVScroll); message WM_VSCROLL;
     procedure WMHScroll(var Msg: TWMHScroll); message WM_HSCROLL;
@@ -182,6 +185,8 @@ type
     procedure LBDeleteString(var Msg: TMessage); message LB_DELETESTRING;
     { Override CN_DRAWITEM handling to be able to switch off focus rect. }
     procedure CNDrawItem(var Msg: TWMDrawItem); message CN_DRAWITEM;
+    procedure WMSize(var Message: TWMSize); message WM_SIZE;
+    procedure WMPaint(var Message: TWMPaint); message WM_PAINT;
     procedure SetAlignment(const Value: TAlignment);
     procedure SetMultiline(const Value: Boolean);
     procedure SetSelectedColor(const Value: TColor);
@@ -200,6 +205,11 @@ type
     procedure SetParentFlat(const Value: Boolean);
     procedure SetColorAlternate(const Value: TColor);
     function IsColorAlternateAlternate: Boolean;
+    procedure SetSeparateItems(const Value: Boolean);
+    function ItemsOfVariableHeight: boolean;
+    function ItemsDemandOwnerDraw: boolean;
+    procedure InvalidateItemsHeight;
+    procedure CheckItemsHeight;
   protected
     procedure ColorChanged; override;
     procedure FontChanged; override;
@@ -270,7 +280,9 @@ type
     destructor Destroy; override;
     function ItemRect(Index: Integer): TRect;
     function ItemsShowing: TStrings; virtual;
+    function ItemHasSeparator(Index: Integer): Boolean;

+    procedure MeasureItem2D(Index, WidthAvail: Integer; var ASize: TSize; const WithSeps: boolean);
     procedure MeasureProviderItem(Index, WidthAvail: Integer; var ASize: TSize);
     procedure MeasureString(const S: string; WidthAvail: Integer; var ASize: TSize);

@@ -306,6 +318,7 @@ type
     property SelectedTextColor: TColor read FSelectedTextColor write SetSelectedTextColor default clHighlightText;
     property DisabledTextColor: TColor read FDisabledTextColor write SetDisabledTextColor default clGrayText;
     property ColorAlternate: TColor read FColorAlternate write SetColorAlternate stored IsColorAlternateAlternate;
+    property SeparateItems: Boolean read FSeparateItems write SetSeparateItems default False;
     property ShowFocusRect: Boolean read FShowFocusRect write SetShowFocusRect default True;
     property Background: TJvListBoxBackground read FBackground write SetBackground;
     property Flat: Boolean read GetFlat write SetFlat default False;
@@ -339,6 +352,7 @@ type
     property Items;

     property MultiLine;
+    property SeparateItems;
     property ColorAlternate;
     property SelectedColor;
     property SelectedTextColor;
@@ -721,6 +735,8 @@ end;

 //=== { TJvCustomListBox } ===================================================

+const JvCustomListBox_ItemsSepGap = 10;
+
 constructor TJvCustomListBox.Create(AOwner: TComponent);
 var
   PStringsAddr: PStrings;
@@ -829,6 +845,7 @@ procedure TJvCustomListBox.CNDrawItem(var Msg: TWMDrawItem);
 var
   State: TOwnerDrawState;
 begin
+  CheckItemsHeight;
   with Msg.DrawItemStruct^ do
   begin
     State := TOwnerDrawState(Word(itemState and $FFFF));
@@ -952,11 +969,19 @@ begin
     Style := Style and not (WS_HSCROLL or WS_VSCROLL) or ScrollBar[FScrollBars] or
       Sorted[FSorted];
   end;
+  if ItemsOfVariableHeight and (Style <> lbOwnerDrawVariable) then
+  begin
+    Params.Style := LBS_OWNERDRAWVARIABLE or
+                     ( Params.Style and not LBS_OWNERDRAWFIXED);
+  end else
+    if ItemsDemandOwnerDraw then begin
+       Params.Style := Params.Style or LBS_OWNERDRAWFIXED;
+    end;
   if IsProviderSelected then
   begin
     Params.Style := Params.Style and not (LBS_SORT or LBS_HASSTRINGS or LBS_NODATA);
-    if Params.Style and (LBS_OWNERDRAWVARIABLE or LBS_OWNERDRAWFIXED) = 0 then
-      Params.Style := Params.Style or LBS_OWNERDRAWFIXED;
+//    if Params.Style and (LBS_OWNERDRAWVARIABLE or LBS_OWNERDRAWFIXED) = 0 then
+//       Params.Style := Params.Style or LBS_OWNERDRAWFIXED;
   end;
 end;

@@ -965,6 +990,8 @@ begin
   if not (csLoading in ComponentState) then
   begin
     FMultiline := MultiLine and (Style = lbOwnerDrawVariable);
+    FSeparateItems := SeparateItems  and (Style = lbOwnerDrawVariable);
+    // TODO: disable DataProvider ?

     if not (Style in [lbOwnerDrawVariable, lbOwnerDrawFixed]) then
       FAlignment := taLeftJustify;
@@ -1054,6 +1081,14 @@ var
   Flags: Longint;
   ActualRect: TRect;
   AText: string;
+  AColor: TColor;
+
+ procedure DrawSeparatorBar(const ALine: byte);
+ begin
+   Canvas.Pen.Color := AColor;
+   Canvas.MoveTo(ActualRect.Left, ActualRect.Bottom - 1 + ALine);
+   Canvas.LineTo(ActualRect.Right - 1, ActualRect.Bottom - 1 + ALine);
+ end;
 begin
   if csDestroying in ComponentState then
      Exit;
@@ -1105,6 +1140,8 @@ begin
     else
       Dec(ActualRect.Right, 2);

+    If ItemHasSeparator(Index) then Dec(ActualRect.Bottom, 3);
+
     if IsProviderSelected then
       DrawProviderItem(Canvas, ActualRect, Index, State)
     else
@@ -1122,6 +1159,25 @@ begin
     if Background.DoDraw and (odSelected in State) then
       InvertRect(Canvas.Handle, ActualRect);
     // no need to draw focus rect, CNDrawItem does that for us
+
+    If ItemHasSeparator(Index) then
+    begin
+      Canvas.Pen.Style := psSolid;
+      Canvas.Pen.Mode  := pmCopy;
+
+      if Odd(Index)
+         then AColor := ColorAlternate
+         else AColor := Color;
+      DrawSeparatorBar(+1);
+
+      AColor := clBlack;
+      DrawSeparatorBar(+2);
+
+      if not Odd(Index)
+         then AColor := ColorAlternate
+         else AColor := Color;
+      DrawSeparatorBar(+3);
+    end;
   end;
 end;

@@ -1298,6 +1354,7 @@ begin
   if FColorAlternate <> Value then
   begin
     FColorAlternate := Value;
+    UpdateStyle;
     Invalidate;
   end;
 end;
@@ -1505,6 +1562,26 @@ begin
   Result := ParentCtl3D;
 end;

+procedure TJvCustomListBox.CheckItemsHeight;
+begin
+  if not FItemsHeightValid then
+     if ItemsOfVariableHeight then
+        if WindowHandle <> 0 then
+           begin
+              RemeasureAll;
+           end;
+end;
+
+procedure TJvCustomListBox.InvalidateItemsHeight;
+begin
+  FItemsHeightValid := false;
+  if WindowHandle <> 0 then
+     InvalidateRect(WindowHandle, nil, True);
+// Width might had changed - affectting the heights.
+// That means both background and items
+// potentially need to be redrawn.
+end;
+
 procedure TJvCustomListBox.InvertSelection;
 var
   I: Integer;
@@ -1640,13 +1717,18 @@ begin
     FOnGetText(Self, Index, AText);
 end;

+// TODO: think about calling event handler *AFTER* manual calculations
+// allowing developer to change the default values for provider, multi-line, etc
 procedure TJvCustomListBox.MeasureItem(Index: Integer;
   var Height: Integer);
 var
   AvailWidth: Integer;
   LSize: TSize;
 begin
-  if Assigned(OnMeasureItem) or (not MultiLine and not IsProviderSelected) or
+  CheckItemsHeight;
+// Win7 x64 / XE2: Index is almost always faaaar out of range (HWND? garbage?)
+// Thus "inherited" almost always called and almost never runs else-branch
+  if Assigned(OnMeasureItem) or (not ItemsOfVariableHeight) or
     (Index < 0) or (Index >= ItemsShowing.Count) then
     inherited MeasureItem(Index, Height)
   else
@@ -1656,13 +1738,30 @@ begin
     else
       AvailWidth := MaxInt;

-    if IsProviderSelected then
-      MeasureProviderItem(Index, AvailWidth, LSize)
-    else
-      MeasureString(ItemsShowing[Index], AvailWidth, LSize);
+    LSize.cy := Height;
+    LSize.cx := AvailWidth;
+    MeasureItem2D( Index, AvailWidth, LSize, False);

     Height := LSize.cy;
   end;
+
+  if ItemHasSeparator(Index) then
+     Inc(Height, 3);
+end;
+
+procedure TJvCustomListBox.MeasureItem2D(Index, WidthAvail: Integer;
+  var ASize: TSize; const WithSeps: boolean);
+begin
+  if (Index < 0) or (Index >= ItemsShowing.Count) then exit;
+
+  if IsProviderSelected then
+    MeasureProviderItem(Index, WidthAvail, ASize)
+  else
+    MeasureString(ItemsShowing[Index], WidthAvail, ASize);
+
+  if WithSeps then
+     if ItemHasSeparator(Index) then
+        Inc(ASize.cy, 3);
 end;

 procedure TJvCustomListBox.MeasureProviderItem(Index, WidthAvail: Integer; var ASize: TSize);
@@ -1805,23 +1904,47 @@ var
   I: Integer;
   LMaxWidth, cx: Integer;
   LItemSize: TSize;
+  DoLimitWidth: boolean;
+  ItemsHeightChanged: boolean;
+  ItemsCount: Integer;
 begin
   LMaxWidth := 0;
-  if LimitToClientWidth then
+  DoLimitWidth := LimitToClientWidth;
+  if DoLimitWidth then
     cx := ClientWidth
   else
     cx := 0;

-  for I := 0 to ItemsShowing.Count - 1 do
+  ItemsCount := ItemsShowing.Count;
+
+  ItemsHeightChanged := ItemsOfVariableHeight and
+         ( Length(FItemsHeightCache) <> ItemsCount );
+  if ItemsHeightChanged then
+    SetLength(FItemsHeightCache, ItemsCount);
+
+  for I := 0 to ItemsCount - 1 do
   begin
-    MeasureString(ItemsShowing[I], cx, LItemSize);
-    if MultiLine then
+    MeasureItem2D(I, cx, LItemSize, True);
+    if ItemsOfVariableHeight then begin
       Perform(LB_SETITEMHEIGHT, I, LItemSize.cy);
+      if FItemsHeightCache[I] <> LItemSize.cy then
+      begin
+        FItemsHeightCache[I] := LItemSize.cy;
+        ItemsHeightChanged := true;
+      end;
+    end;

-    if not LimitToClientWidth and (LItemSize.cx > LMaxWidth) then
+    if not DoLimitWidth and (LItemSize.cx > LMaxWidth) then
       LMaxWidth := LItemSize.cx;
   end;
-  if not LimitToClientWidth then
+  FItemsHeightValid := True;
+
+  // Remeasure might be caleld from inside painter
+  // So it will need to initiate another paint cycle with different heights
+  If ItemsHeightChanged and HandleAllocated
+     then InvalidateRect(Handle, nil, True);
+
+  if not DoLimitWidth then
     MaxWidth := LMaxWidth;
 end;

@@ -1933,9 +2056,19 @@ begin
         ScrollBars := ssNone;
       FMaxWidth := 0;
       Perform(LB_SETHORIZONTALEXTENT, 0, 0);
-    end
-    else
-      RemeasureAll;
+    end;
+
+    InvalidateItemsHeight;
+  end;
+end;
+
+
+procedure TJvCustomListBox.SetSeparateItems(const Value: Boolean);
+begin
+  if SeparateItems <> Value then begin
+     FSeparateItems := Value;
+     UpdateStyle;
+     InvalidateItemsHeight;
   end;
 end;

@@ -2017,31 +2150,49 @@ begin
   //    SendMessage(Handle, LB_SETHORIZONTALEXTENT, FHorizontalExtent, 0);
 end;

+function TJvCustomListBox.ItemsDemandOwnerDraw: boolean;
+begin
+  Result := ItemsOfVariableHeight
+            or (Alignment <> taLeftJustify) or (Color <> ColorAlternate)
+  // Mantis 3477: Background requires the list to be ownerdrawn
+            or (Background.Visible and Assigned(Background.Image))
+            or (Style in [lbOwnerDrawVariable, lbOwnerDrawFixed]);
+end;
+
+
+function TJvCustomListBox.ItemsOfVariableHeight: boolean;
+begin
+  Result := MultiLine or SeparateItems or IsProviderSelected
+              or (Style = lbOwnerDrawVariable);
+end;
+
+
 procedure TJvCustomListBox.UpdateStyle;
 const
   CShowFocusRect: array [Boolean] of Integer = (0, 2);
 var
-  PreviousStyle: TListBoxStyle;
+  PreviousStyle, NeededStyle: TListBoxStyle;
 begin
   if csLoading in ComponentState then
     Exit;

   PreviousStyle := Style;
+  NeededStyle := Style;

-  if MultiLine then
-    Style := lbOwnerDrawVariable
-  else
-  if Alignment <> taLeftJustify then
-    Style := lbOwnerDrawFixed;
+  If ItemsOfVariableHeight then begin
+     NeededStyle := lbOwnerDrawVariable;
+  end else if ItemsDemandOwnerDraw then begin
+     NeededStyle := lbOwnerDrawFixed;
+  end;

-  // Mantis 3477: Background requires the list to be ownerdrawn
-  if Background.Visible and Assigned(Background.Image) and
-     not (Style in [lbOwnerDrawVariable, lbOwnerDrawFixed]) then
-    Style := lbOwnerDrawFixed;
+  Style := NeededStyle;
+  If NeededStyle = lbOwnerDrawVariable then
+     IntegralHeight := false;

   if (PreviousStyle = lbStandard) and (Style <> lbStandard) then
   begin
     ItemHeight := CanvasMaxTextHeight(Canvas) + CShowFocusRect[ShowFocusRect];
+    // calls RecreateWnd - why should we ???
     RemeasureAll;
   end;
 end;
@@ -2098,6 +2249,20 @@ begin
   end;
 end;

+procedure TJvCustomListBox.WMPaint(var Message: TWMPaint);
+begin
+  CheckItemsHeight;
+  inherited;
+end;
+
+procedure TJvCustomListBox.WMSize(var Message: TWMSize);
+begin
+  if WindowHandle <> 0 then
+     if ItemsOfVariableHeight then
+        InvalidateItemsHeight;
+  inherited;
+end;
+
 procedure TJvCustomListBox.WMVScroll(var Msg: TWMVScroll);
 var
   DontScroll: Boolean;
@@ -2125,6 +2290,12 @@ begin
   end;
 end;

+function TJvCustomListBox.ItemHasSeparator(Index: Integer): Boolean;
+begin
+  Result := SeparateItems and (Index >= 0)
+              and (Index < ItemsShowing.Count - 1 );
+end;
+
 function TJvCustomListBox.ItemRect(Index: Integer): TRect;
 var
   Count: Integer;
--
1.8.3.msysgit.0

2013-08-23 11:26



0004-Fixed-runtime-resizing-with-regards-to-Multiline-and.patch (2,881 bytes)
From c1ae646c098cc699c9fff99232f9afc5e6ea6533 Mon Sep 17 00:00:00 2001
From: the-Arioch <the_Arioch@nm.ru>
Date: Fri, 23 Aug 2013 13:14:21 +0400
Subject: [PATCH] Fixed runtime resizing with regards to Multiline and
 Separator

---
 jvcl/examples/JvListComb/ListBoxFormU.dfm |  9 ---------
 jvcl/run/JvListBox.pas                    | 18 +++++++++++-------
 2 files changed, 11 insertions(+), 16 deletions(-)

diff --git a/jvcl/examples/JvListComb/ListBoxFormU.dfm b/jvcl/examples/JvListComb/ListBoxFormU.dfm
index cf6cfe7..ddab04a 100644
--- a/jvcl/examples/JvListComb/ListBoxFormU.dfm
+++ b/jvcl/examples/JvListComb/ListBoxFormU.dfm
@@ -219,17 +219,12 @@ object fmListBox: TfmListBox
     TabPosition = tpBottom
     object tsJVCL: TTabSheet
       Caption = 'JediVCL Listbox'
-      ExplicitLeft = 0
-      ExplicitTop = 0
-      ExplicitWidth = 0
-      ExplicitHeight = 0
       object lst1: TJvListBox
         Left = 0
         Top = 0
         Width = 395
         Height = 461
         Align = alClient
-        IntegralHeight = True
         Background.FillMode = bfmTile
         Background.Visible = False
         TabOrder = 0
@@ -238,10 +233,6 @@ object fmListBox: TfmListBox
     object tsVCL: TTabSheet
       Caption = 'Standard ListBox'
       ImageIndex = 1
-      ExplicitLeft = 0
-      ExplicitTop = 0
-      ExplicitWidth = 0
-      ExplicitHeight = 0
       object lst2: TListBox
         Left = 0
         Top = 0
diff --git a/jvcl/run/JvListBox.pas b/jvcl/run/JvListBox.pas
index b154eee..ab2b756 100644
--- a/jvcl/run/JvListBox.pas
+++ b/jvcl/run/JvListBox.pas
@@ -969,14 +969,18 @@ begin
     Style := Style and not (WS_HSCROLL or WS_VSCROLL) or ScrollBar[FScrollBars] or
       Sorted[FSorted];
   end;
-  if ItemsOfVariableHeight and (Style <> lbOwnerDrawVariable) then
+
+  if ItemsOfVariableHeight then
   begin
-    Params.Style := LBS_OWNERDRAWVARIABLE or
+    if Self.Style <> lbOwnerDrawVariable then
+       Params.Style := LBS_OWNERDRAWVARIABLE or
                      ( Params.Style and not LBS_OWNERDRAWFIXED);
-  end else
-    if ItemsDemandOwnerDraw then begin
-       Params.Style := Params.Style or LBS_OWNERDRAWFIXED;
-    end;
+  end else begin
+       // only when NOT ItemsOfVariableHeight
+    if ItemsDemandOwnerDraw then
+       Params.Style := LBS_OWNERDRAWFIXED or
+                     ( Params.Style and not LBS_OWNERDRAWVARIABLE);
+  end;
   if IsProviderSelected then
   begin
     Params.Style := Params.Style and not (LBS_SORT or LBS_HASSTRINGS or LBS_NODATA);
@@ -1939,7 +1943,7 @@ begin
   end;
   FItemsHeightValid := True;

-  // Remeasure might be caleld from inside painter
+  // Remeasure might be called from inside painter
   // So it will need to initiate another paint cycle with different heights
   If ItemsHeightChanged and HandleAllocated
      then InvalidateRect(Handle, nil, True);
--
1.8.3.msysgit.0

Arioch

2013-08-23 11:26

developer   ~0020595

Now seems to be fully implemented and ready to merge.

Please, apply patches.

2013-08-31 13:26



0005-6191.patch (18,533 bytes)
From 38b995b4cc80f81c546177762c402dd41df3b63c Mon Sep 17 00:00:00 2001
From: Arioch <the_Arioch@nm.ru>
Date: Sat, 31 Aug 2013 15:23:32 +0400
Subject: [PATCH] #6191 1. Better demo for list boxes 2. Better drawing
 inter-items separators

---
 jvcl/examples/JvListComb/ListBoxFormU.dfm      | 151 ++++++++++++-------
 jvcl/examples/JvListComb/ListBoxFormU.pas      |   2 +
 jvcl/examples/JvListComb/ListCombMainFormU.dfm | 199 ++++++++++---------------
 jvcl/examples/JvListComb/ListCombMainFormU.pas |  13 +-
 jvcl/run/JvListBox.pas                         |  60 +++++---
 5 files changed, 219 insertions(+), 206 deletions(-)

diff --git a/jvcl/examples/JvListComb/ListBoxFormU.dfm b/jvcl/examples/JvListComb/ListBoxFormU.dfm
index ddab04a..c23dec2 100644
--- a/jvcl/examples/JvListComb/ListBoxFormU.dfm
+++ b/jvcl/examples/JvListComb/ListBoxFormU.dfm
@@ -3,12 +3,14 @@ object fmListBox: TfmListBox
   Top = 0
   BorderStyle = bsSizeToolWin
   Caption = 'TJvListBox'
-  ClientHeight = 490
-  ClientWidth = 548
+  ClientHeight = 443
+  ClientWidth = 545
   Color = clBtnFace
+  Constraints.MinHeight = 294
+  Constraints.MinWidth = 414
   Font.Charset = DEFAULT_CHARSET
   Font.Color = clWindowText
-  Font.Height = -13
+  Font.Height = -10
   Font.Name = 'Tahoma'
   Font.Style = []
   OldCreateOrder = False
@@ -16,50 +18,53 @@ object fmListBox: TfmListBox
   Visible = True
   OnCreate = FormCreate
   OnShow = FormShow
-  PixelsPerInch = 120
-  TextHeight = 16
+  PixelsPerInch = 96
+  TextHeight = 12
   object pnl1: TPanel
-    Left = 403
+    Left = 436
     Top = 0
-    Width = 145
-    Height = 490
+    Width = 109
+    Height = 443
+    Margins.Left = 2
+    Margins.Top = 2
+    Margins.Right = 2
+    Margins.Bottom = 2
     Align = alRight
     TabOrder = 0
+    ExplicitLeft = 302
+    ExplicitHeight = 368
     DesignSize = (
-      145
-      490)
+      109
+      443)
     object btnTextGen: TButton
-      Left = 27
-      Top = 443
-      Width = 92
-      Height = 31
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
-      Margins.Bottom = 4
+      Left = 20
+      Top = 407
+      Width = 69
+      Height = 24
       Anchors = [akRight, akBottom]
       Caption = 'Random...'
       TabOrder = 0
       OnClick = btnTextGenClick
+      ExplicitTop = 332
     end
     object chkWW: TCheckBox
-      Left = 16
-      Top = 19
-      Width = 108
-      Height = 17
+      Left = 12
+      Top = 14
+      Width = 81
+      Height = 13
+      Margins.Left = 2
+      Margins.Top = 2
+      Margins.Right = 2
+      Margins.Bottom = 2
       Caption = 'Wrap words'
       TabOrder = 1
       OnClick = chkWWClick
     end
     object cbcMain: TJvColorComboBox
-      Left = 7
-      Top = 81
-      Width = 130
-      Height = 23
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
-      Margins.Bottom = 4
+      Left = 5
+      Top = 61
+      Width = 98
+      Height = 19
       Anchors = [akLeft, akTop, akRight]
       ColorNameMap.Strings = (
         'clBlack=Black'
@@ -114,21 +119,17 @@ object fmListBox: TfmListBox
         'clMenuHighlight=Menu Highlight')
       ColorValue = clWhite
       ColorDialogText = '(Custom...)'
-      DroppedDownWidth = 130
+      DroppedDownWidth = 98
       NewColorText = 'New Color '
       Options = [coText, coCustomColors]
       TabOrder = 2
       OnChange = cbcMainChange
     end
     object cbcAlt: TJvColorComboBox
-      Left = 7
-      Top = 126
-      Width = 130
-      Height = 23
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
-      Margins.Bottom = 4
+      Left = 5
+      Top = 95
+      Width = 98
+      Height = 19
       Anchors = [akLeft, akTop, akRight]
       ColorNameMap.Strings = (
         'clBlack=Black'
@@ -183,27 +184,35 @@ object fmListBox: TfmListBox
         'clMenuHighlight=Menu Highlight')
       ColorValue = clWhite
       ColorDialogText = '(Custom...)'
-      DroppedDownWidth = 130
+      DroppedDownWidth = 98
       NewColorText = 'New Color '
       Options = [coText, coCustomColors]
       TabOrder = 3
       OnChange = cbcAltChange
     end
     object chkAlt: TCheckBox
-      Left = 40
-      Top = 155
-      Width = 97
-      Height = 17
+      Left = 30
+      Top = 116
+      Width = 73
+      Height = 13
+      Margins.Left = 2
+      Margins.Top = 2
+      Margins.Right = 2
+      Margins.Bottom = 2
       Caption = 'Alternate'
       TabOrder = 4
       OnClick = chkAltClick
     end
     object chkOutline: TCheckBox
-      Left = 16
-      Top = 224
-      Width = 97
-      Height = 17
-      Caption = 'chkOutline'
+      Left = 12
+      Top = 168
+      Width = 73
+      Height = 13
+      Margins.Left = 2
+      Margins.Top = 2
+      Margins.Right = 2
+      Margins.Bottom = 2
+      Caption = 'Outline Lines'
       TabOrder = 5
       OnClick = chkOutlineClick
     end
@@ -211,35 +220,67 @@ object fmListBox: TfmListBox
   object pgcLBs: TPageControl
     Left = 0
     Top = 0
-    Width = 403
-    Height = 490
+    Width = 436
+    Height = 443
+    Margins.Left = 2
+    Margins.Top = 2
+    Margins.Right = 2
+    Margins.Bottom = 2
     ActivePage = tsJVCL
     Align = alClient
     TabOrder = 1
     TabPosition = tpBottom
+    ExplicitWidth = 302
+    ExplicitHeight = 368
     object tsJVCL: TTabSheet
+      Margins.Left = 2
+      Margins.Top = 2
+      Margins.Right = 2
+      Margins.Bottom = 2
       Caption = 'JediVCL Listbox'
+      ExplicitWidth = 294
+      ExplicitHeight = 343
       object lst1: TJvListBox
         Left = 0
         Top = 0
-        Width = 395
-        Height = 461
+        Width = 428
+        Height = 418
+        Margins.Left = 2
+        Margins.Top = 2
+        Margins.Right = 2
+        Margins.Bottom = 2
         Align = alClient
+        ItemHeight = 12
         Background.FillMode = bfmTile
         Background.Visible = False
         TabOrder = 0
+        ExplicitWidth = 294
+        ExplicitHeight = 343
       end
     end
     object tsVCL: TTabSheet
+      Margins.Left = 2
+      Margins.Top = 2
+      Margins.Right = 2
+      Margins.Bottom = 2
       Caption = 'Standard ListBox'
       ImageIndex = 1
+      ExplicitWidth = 294
+      ExplicitHeight = 343
       object lst2: TListBox
         Left = 0
         Top = 0
-        Width = 395
-        Height = 461
+        Width = 428
+        Height = 418
+        Margins.Left = 2
+        Margins.Top = 2
+        Margins.Right = 2
+        Margins.Bottom = 2
         Align = alClient
+        ItemHeight = 12
         TabOrder = 0
+        ExplicitWidth = 294
+        ExplicitHeight = 343
       end
     end
   end
diff --git a/jvcl/examples/JvListComb/ListBoxFormU.pas b/jvcl/examples/JvListComb/ListBoxFormU.pas
index 7e308b9..3afac5b 100644
--- a/jvcl/examples/JvListComb/ListBoxFormU.pas
+++ b/jvcl/examples/JvListComb/ListBoxFormU.pas
@@ -83,6 +83,8 @@ procedure TfmListBox.FormCreate(Sender: TObject);
 begin
   lst1.ColorAlternate := clLime;
   lst1.Color := clYellow;
+
+  btnTextGenClick(Self);
 end;

 procedure TfmListBox.FormShow(Sender: TObject);
diff --git a/jvcl/examples/JvListComb/ListCombMainFormU.dfm b/jvcl/examples/JvListComb/ListCombMainFormU.dfm
index 9bf71b2..cb41888 100644
--- a/jvcl/examples/JvListComb/ListCombMainFormU.dfm
+++ b/jvcl/examples/JvListComb/ListCombMainFormU.dfm
@@ -2,40 +2,32 @@ object ListCombMainForm: TListCombMainForm
   Left = 276
   Top = 174
   Caption = 'JvComboBox sample'
-  ClientHeight = 561
-  ClientWidth = 694
+  ClientHeight = 456
+  ClientWidth = 564
   Color = clBtnFace
   Font.Charset = DEFAULT_CHARSET
   Font.Color = clWindowText
-  Font.Height = -14
+  Font.Height = -11
   Font.Name = 'MS Sans Serif'
   Font.Style = []
   OldCreateOrder = True
   OnCreate = FormCreate
-  PixelsPerInch = 120
-  TextHeight = 16
+  PixelsPerInch = 96
+  TextHeight = 13
   object Splitter1: TSplitter
-    Left = 348
-    Top = 86
-    Width = 6
-    Height = 475
-    Margins.Left = 4
-    Margins.Top = 4
-    Margins.Right = 4
-    Margins.Bottom = 4
+    Left = 283
+    Top = 75
+    Width = 5
+    Height = 381
     Align = alRight
-    ExplicitTop = 92
-    ExplicitHeight = 469
+    ExplicitTop = 70
+    ExplicitHeight = 386
   end
   object Panel2: TPanel
     Left = 0
-    Top = 86
-    Width = 348
-    Height = 475
-    Margins.Left = 4
-    Margins.Top = 4
-    Margins.Right = 4
-    Margins.Bottom = 4
+    Top = 75
+    Width = 283
+    Height = 381
     Align = alClient
     BevelOuter = bvNone
     BorderWidth = 2
@@ -44,16 +36,12 @@ object ListCombMainForm: TListCombMainForm
     object JvListBox1: TJvImageListBox
       Left = 2
       Top = 2
-      Width = 344
-      Height = 471
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
-      Margins.Bottom = 4
+      Width = 279
+      Height = 377
       Align = alClient
       Font.Charset = DEFAULT_CHARSET
       Font.Color = clWindowText
-      Font.Height = -15
+      Font.Height = -12
       Font.Name = 'MS Sans Serif'
       Font.Style = []
       Items = <>
@@ -67,72 +55,51 @@ object ListCombMainForm: TListCombMainForm
     end
   end
   object Panel3: TPanel
-    Left = 354
-    Top = 86
-    Width = 340
-    Height = 475
-    Margins.Left = 4
-    Margins.Top = 4
-    Margins.Right = 4
-    Margins.Bottom = 4
+    Left = 288
+    Top = 75
+    Width = 276
+    Height = 381
     Align = alRight
     BevelOuter = bvNone
     TabOrder = 1
     DesignSize = (
-      340
-      475)
+      276
+      381)
     object Label1: TLabel
-      Left = 81
-      Top = 103
-      Width = 94
-      Height = 16
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
+      Left = 66
+      Top = 84
+      Width = 75
+      Height = 13
       Caption = 'a JvColorButton'
     end
     object Label2: TLabel
-      Left = 207
-      Top = 26
-      Width = 124
-      Height = 16
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
+      Left = 168
+      Top = 21
+      Width = 95
+      Height = 13
       Caption = 'a JvColorComboBox'
     end
     object Label3: TLabel
-      Left = 207
-      Top = 64
-      Width = 118
-      Height = 16
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
+      Left = 168
+      Top = 52
+      Width = 92
+      Height = 13
       Caption = 'a JvFontComboBox'
     end
     object Button2: TButton
-      Left = 20
-      Top = 153
-      Width = 92
-      Height = 30
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
-      Margins.Bottom = 4
+      Left = 16
+      Top = 124
+      Width = 75
+      Height = 25
       Caption = 'Toggle justify'
       TabOrder = 0
       OnClick = Button2Click
     end
     object CheckBox1: TCheckBox
-      Left = 20
-      Top = 128
-      Width = 119
-      Height = 21
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
-      Margins.Bottom = 4
+      Left = 16
+      Top = 104
+      Width = 97
+      Height = 17
       Caption = 'Images'
       Checked = True
       State = cbChecked
@@ -140,32 +107,24 @@ object ListCombMainForm: TListCombMainForm
       OnClick = CheckBox1Click
     end
     object JvColorComboBox1: TJvColorComboBox
-      Left = 20
-      Top = 20
-      Width = 178
-      Height = 23
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
-      Margins.Bottom = 4
+      Left = 16
+      Top = 16
+      Width = 145
+      Height = 20
       ColorValue = clWhite
       ColorDialogText = '(Custom...)'
-      DroppedDownWidth = 178
+      DroppedDownWidth = 145
       NewColorText = 'New Color '
       Options = [coText, coCustomColors]
       TabOrder = 2
       OnChange = JvColorComboBox1Change
     end
     object JvFontComboBox1: TJvFontComboBox
-      Left = 20
-      Top = 59
-      Width = 178
-      Height = 23
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
-      Margins.Bottom = 4
-      DroppedDownWidth = 178
+      Left = 16
+      Top = 48
+      Width = 145
+      Height = 22
+      DroppedDownWidth = 145
       MaxMRUCount = 0
       FontName = '@Arial Unicode MS'
       ItemIndex = 0
@@ -174,43 +133,39 @@ object ListCombMainForm: TListCombMainForm
       OnChange = JvFontComboBox1Change
     end
     object JvColorButton1: TJvColorButton
-      Left = 20
-      Top = 98
-      Width = 51
-      Height = 26
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
-      Margins.Bottom = 4
+      Left = 16
+      Top = 80
       OtherCaption = '&Other...'
       Options = []
       OnChange = JvColorButton1Change
       TabOrder = 4
     end
     object Button1: TButton
-      Left = 20
-      Top = 427
-      Width = 92
-      Height = 31
-      Margins.Left = 4
-      Margins.Top = 4
-      Margins.Right = 4
-      Margins.Bottom = 4
+      Left = 16
+      Top = 347
+      Width = 75
+      Height = 25
       Anchors = [akLeft, akBottom]
       Caption = 'Load...'
       TabOrder = 5
       OnClick = Button1Click
     end
+    object btnListBoxDemo: TButton
+      Left = 176
+      Top = 347
+      Width = 89
+      Height = 25
+      Anchors = [akRight, akBottom]
+      Caption = 'TJvListBox >>'
+      TabOrder = 6
+      OnClick = btnListBoxDemoClick
+    end
   end
   object JvComboBox1: TJvImageComboBox
     Left = 0
-    Top = 60
-    Width = 694
+    Top = 49
+    Width = 564
     Height = 26
-    Margins.Left = 4
-    Margins.Top = 4
-    Margins.Right = 4
-    Margins.Bottom = 4
     Style = csOwnerDrawVariable
     Align = alTop
     ButtonFrame = True
@@ -219,7 +174,7 @@ object ListCombMainForm: TListCombMainForm
     DropDownCount = 10
     Font.Charset = DEFAULT_CHARSET
     Font.Color = clBlack
-    Font.Height = -15
+    Font.Height = -12
     Font.Name = 'MS Sans Serif'
     Font.Style = []
     ImageHeight = 0
@@ -234,17 +189,13 @@ object ListCombMainForm: TListCombMainForm
   object PanelTop: TPanel
     Left = 0
     Top = 0
-    Width = 694
-    Height = 60
-    Margins.Left = 4
-    Margins.Top = 4
-    Margins.Right = 4
-    Margins.Bottom = 4
+    Width = 564
+    Height = 49
     Align = alTop
     Caption = 'Here you can see some Combo and List Boxes from the JVCL'
     Font.Charset = DEFAULT_CHARSET
     Font.Color = clWindowText
-    Font.Height = -17
+    Font.Height = -15
     Font.Name = 'MS Sans Serif'
     Font.Style = [fsBold]
     ParentFont = False
diff --git a/jvcl/examples/JvListComb/ListCombMainFormU.pas b/jvcl/examples/JvListComb/ListCombMainFormU.pas
index 4cfae83..15c34af 100644
--- a/jvcl/examples/JvListComb/ListCombMainFormU.pas
+++ b/jvcl/examples/JvListComb/ListCombMainFormU.pas
@@ -52,7 +52,7 @@ type
     Label1: TLabel;
     Label2: TLabel;
     Label3: TLabel;
-    procedure TransparentButton1Click(Sender: TObject);
+    btnListBoxDemo: TButton;
     procedure Button1Click(Sender: TObject);
     procedure Button2Click(Sender: TObject);
     procedure CheckBox1Click(Sender: TObject);
@@ -60,18 +60,23 @@ type
     procedure JvFontComboBox1Change(Sender: TObject);
     procedure JvColorButton1Change(Sender: TObject);
     procedure FormCreate(Sender: TObject);
+    procedure btnListBoxDemoClick(Sender: TObject);
   end;

 var
   ListCombMainForm: TListCombMainForm;

-implementation
+implementation  uses ListBoxFormU;

 {$R *.DFM}

-procedure TListCombMainForm.TransparentButton1Click(Sender: TObject);
+procedure TListCombMainForm.btnListBoxDemoClick(Sender: TObject);
 begin
-  ShowMessage('Hej Simon!')
+  with fmListBox do begin
+    if Visible
+       then BringToFront
+       else Show;
+  end;
 end;

 procedure TListCombMainForm.Button1Click(Sender: TObject);
diff --git a/jvcl/run/JvListBox.pas b/jvcl/run/JvListBox.pas
index ab2b756..2daeb34 100644
--- a/jvcl/run/JvListBox.pas
+++ b/jvcl/run/JvListBox.pas
@@ -1076,6 +1076,8 @@ end;

 { This procedure is a slightly modified version of TCustomListbox.DrawItem! }

+const JvCustomListBoxItemsSeparatorIndent = 6;
+
 procedure TJvCustomListBox.DefaultDrawItem(Index: Integer; ARect: TRect;
   State: TOwnerDrawState);
 const
@@ -1088,10 +1090,18 @@ var
   AColor: TColor;

  procedure DrawSeparatorBar(const ALine: byte);
+ var dX, Y: integer;
  begin
    Canvas.Pen.Color := AColor;
-   Canvas.MoveTo(ActualRect.Left, ActualRect.Bottom - 1 + ALine);
-   Canvas.LineTo(ActualRect.Right - 1, ActualRect.Bottom - 1 + ALine);
+   Y := ActualRect.Bottom - 1 + ALine;
+
+   dX := 0;
+   if Color = ColorAlternate then
+      if ActualRect.Right - ActualRect.Left > 4 * JvCustomListBoxItemsSeparatorIndent then
+         dX := JvCustomListBoxItemsSeparatorIndent;
+
+   Canvas.MoveTo( ActualRect.Left + dX, Y );
+   Canvas.LineTo( ActualRect.Right - dX, Y );
  end;
 begin
   if csDestroying in ComponentState then
@@ -1139,13 +1149,36 @@ begin
     else
       Flags := DrawTextBiDiModeFlags(DT_SINGLELINE or DT_VCENTER or DT_NOPREFIX or
         AlignFlags[FAlignment]);
+
+    If ItemHasSeparator(Index) then
+    begin
+      // This sequence has to be executed before "UseRightToLeftAlignment" check
+      //   below would cripple ActualRect horizontal coordinates!
+
+      Dec(ActualRect.Bottom, 3);
+
+      Canvas.Pen.Style := psSolid;
+      Canvas.Pen.Mode  := pmCopy;
+
+      if Odd(Index)
+         then AColor := ColorAlternate
+         else AColor := Color;
+      DrawSeparatorBar(+1);
+
+      AColor := clBlack;
+      DrawSeparatorBar(+2);
+
+      if not Odd(Index)
+         then AColor := ColorAlternate
+         else AColor := Color;
+      DrawSeparatorBar(+3);
+    end;
+
     if not UseRightToLeftAlignment then
       Inc(ActualRect.Left, 2)
     else
       Dec(ActualRect.Right, 2);

-    If ItemHasSeparator(Index) then Dec(ActualRect.Bottom, 3);
-
     if IsProviderSelected then
       DrawProviderItem(Canvas, ActualRect, Index, State)
     else
@@ -1163,25 +1196,6 @@ begin
     if Background.DoDraw and (odSelected in State) then
       InvertRect(Canvas.Handle, ActualRect);
     // no need to draw focus rect, CNDrawItem does that for us
-
-    If ItemHasSeparator(Index) then
-    begin
-      Canvas.Pen.Style := psSolid;
-      Canvas.Pen.Mode  := pmCopy;
-
-      if Odd(Index)
-         then AColor := ColorAlternate
-         else AColor := Color;
-      DrawSeparatorBar(+1);
-
-      AColor := clBlack;
-      DrawSeparatorBar(+2);
-
-      if not Odd(Index)
-         then AColor := ColorAlternate
-         else AColor := Color;
-      DrawSeparatorBar(+3);
-    end;
   end;
 end;

--
1.8.3.msysgit.0
0005-6191.patch (18,533 bytes)

2013-09-06 18:55



0006-6191-inter-items-outline-was-lost-when-changing-the-.patch (2,257 bytes)
From 702b39768f5682321fa1b19b81417702e3452891 Mon Sep 17 00:00:00 2001
From: the-Arioch <the_Arioch@nm.ru>
Date: Fri, 6 Sep 2013 20:36:22 +0400
Subject: [PATCH] #6191: inter-items outline was lost when changing the
 TJvListBox.Items.Text

---
 jvcl/run/JvListBox.pas | 20 ++++++++++++++++++--
 1 file changed, 18 insertions(+), 2 deletions(-)

diff --git a/jvcl/run/JvListBox.pas b/jvcl/run/JvListBox.pas
index 2daeb34..b29a60d 100644
--- a/jvcl/run/JvListBox.pas
+++ b/jvcl/run/JvListBox.pas
@@ -2343,16 +2343,28 @@ procedure TJvCustomListBox.WndProc(var Msg: TMessage);
 var
   ItemWidth: Word;
 begin
+//TODO:  Three of five messages below have later worked out in
+//
+//    procedure LBAddString(var Msg: TMessage); message LB_ADDSTRING;
+//    procedure LBInsertString(var Msg: TMessage); message LB_INSERTSTRING;
+//    procedure LBDeleteString(var Msg: TMessage); message LB_DELETESTRING;
+//
+//    Either that is intended (to make pre- and post-processing around stock
+//      VCL.TListBox behavior), then it should be documented.
+//    Or that is naive merging artefact and should be fixed (single responsibnility principle)
   case Msg.Msg of
     LB_ADDSTRING, LB_INSERTSTRING:
       begin
+        FItemsHeightValid := False;
         ItemWidth := Canvas.TextWidth(StrPas(PChar(Msg.LParam)) + ' ');
         if FMaxWidth < ItemWidth then
           FMaxWidth := ItemWidth;
-        SendMessage(Handle, LB_SETHORIZONTALEXTENT, FMaxWidth, 0);
+        if ScrollBars in [ssBoth, ssHorizontal] then
+           SendMessage(Handle, LB_SETHORIZONTALEXTENT, FMaxWidth, 0);
       end;
     LB_DELETESTRING:
       begin
+        FItemsHeightValid := False;
         if Msg.WParam < WPARAM(ItemsShowing.Count) then
           ItemWidth := Canvas.TextWidth(ItemsShowing[Msg.WParam] + ' ')
         else
@@ -2365,9 +2377,13 @@ begin
         end;
       end;
     LB_RESETCONTENT:
-      SendMessage(Handle, LB_SETHORIZONTALEXTENT, 0, 0);
+      begin
+        FItemsHeightValid := False;
+        SendMessage(Handle, LB_SETHORIZONTALEXTENT, 0, 0);
+      end;
     WM_SETFONT:
       begin
+        FItemsHeightValid := False;
         inherited WndProc(Msg);
         Canvas.Font.Assign(Font);
         UpdateHorizontalExtent;
--
1.8.3.msysgit.0

2013-09-06 19:00




2013-09-06 19:01




Arioch

2013-09-06 19:01

developer   ~0020634

All properties seems to be freely changeable at any moment in runtime.

Previously they either did not existed, or only worked if set in DFM and never changed in runtime

2013-09-07 13:34



0007-6191-Removing-TJvNTEventLog-from-Win64-packages-inco.patch (2,678 bytes)
From 3f32dcb863ee9b507033c891c2d96a09ab816ef2 Mon Sep 17 00:00:00 2001
From: Arioch <the_Arioch@nm.ru>
Date: Sat, 7 Sep 2013 15:24:15 +0400
Subject: [PATCH] #6191 - Removing TJvNTEventLog from Win64 packages -
 incompatible

---
 jvcl/design/JvSystemReg.pas      | 6 ++++--
 jvcl/packages/xml/JvSystem-R.xml | 2 +-
 2 files changed, 5 insertions(+), 3 deletions(-)

diff --git a/jvcl/design/JvSystemReg.pas b/jvcl/design/JvSystemReg.pas
index 7581eef..97260f0 100644
--- a/jvcl/design/JvSystemReg.pas
+++ b/jvcl/design/JvSystemReg.pas
@@ -38,10 +38,11 @@ uses
   Controls,
   FiltEdit, DesignEditors, DesignIntf,
   JvDsgnConsts,
+  {$IfDef CPU386}JvNTEventLog, {$EndIf}
   JvClipboardMonitor, JvClipboardViewer, JvHidControllerClass,
   JvDragDrop, JvDdeCmd, JvAppCommand, JvScreenSaveSuppress, JvWndProcHook, JvSysRequirements,
   JvMRUList, JvMRUManager, JvCommStatus, JvJoystick,
-  JvNTEventLog, JvRas32, JvAppInst, JvScreenSaver,
+  JvRas32, JvAppInst, JvScreenSaver,
   JvShellHook, JvSHFileOperation, JvSoundControl, JvChangeNotify, JvSearchFiles,
   JvPerfMon95, JvComputerInfoEx,
   JvChangeNotifyEditor, JvPerfStatEditor, JvTimerList, JvTimerListEditor,
@@ -68,7 +69,8 @@ begin
     TJvAppDdeCmd, TJvHidDeviceController, TJvDropTarget, TJvDragDrop, TJvAppCommand,
     TJvScreenSaveSuppressor, TJvSysRequirements]);
   RegisterComponents(RsPaletteSystem, [{TJvComputerInfo, // - do not register this component as default}
-    TJvSHFileOperation, TJvChangeNotify, TJvAppInstances, TJvNTEventLog,
+    TJvSHFileOperation, TJvChangeNotify, TJvAppInstances,
+	{$IfDef CPU386} TJvNTEventLog, {$EndIf}
     TJvMailSlotServer, TJvMailSlotClient,
     TJvScreenSaver, TJvJoystick, TJvSoundControl,
     TJvPerfStat95, TJvComputerInfoEx, TJvDebugHandler]);
diff --git a/jvcl/packages/xml/JvSystem-R.xml b/jvcl/packages/xml/JvSystem-R.xml
index 812885d..2e64431 100644
--- a/jvcl/packages/xml/JvSystem-R.xml
+++ b/jvcl/packages/xml/JvSystem-R.xml
@@ -38,7 +38,7 @@
     <File Name="..\..\run\JvJoystick.pas" Targets="all" Formname="" Condition=""/>
     <File Name="..\..\run\JvMRUList.pas" Targets="all" Formname="" Condition=""/>
     <File Name="..\..\run\JvMRUManager.pas" Targets="all" Formname="" Condition=""/>
-    <File Name="..\..\run\JvNTEventLog.pas" Targets="all" Formname="" Condition=""/>
+    <File Name="..\..\run\JvNTEventLog.pas" Targets="all_win32" Formname="" Condition=""/>
     <File Name="..\..\run\JvPerfMon95.pas" Targets="all" Formname="" Condition=""/>
     <File Name="..\..\run\JvRas32.pas" Targets="all" Formname="" Condition=""/>
     <File Name="..\..\run\JvScreenResolution.pas" Targets="all" Formname="" Condition=""/>
--
1.8.3.msysgit.0

Arioch

2014-02-05 19:49

developer   ~0020907

problems found, not ready

Issue History

Date Modified Username Field Change
2013-08-22 19:05 Arioch New Issue
2013-08-22 19:05 Arioch File Added: 0002-JvListBox-alternating-items-color.patch
2013-08-22 19:05 Arioch File Added: 0003-TJvListbox-1-Added-two-ways-to-visually-distinguish-.patch
2013-08-23 11:26 Arioch File Added: 0004-Fixed-runtime-resizing-with-regards-to-Multiline-and.patch
2013-08-23 11:26 Arioch Note Added: 0020595
2013-08-31 13:26 Arioch File Added: 0005-6191.patch
2013-09-02 14:15 Arioch Status new => confirmed
2013-09-06 18:55 Arioch File Added: 0006-6191-inter-items-outline-was-lost-when-changing-the-.patch
2013-09-06 19:00 Arioch File Added: Demo_1.png
2013-09-06 19:01 Arioch File Added: Demo_2.png
2013-09-06 19:01 Arioch Note Added: 0020634
2013-09-07 13:34 Arioch File Added: 0007-6191-Removing-TJvNTEventLog-from-Win64-packages-inco.patch
2014-02-05 19:49 Arioch Summary JvListView enhancements => JvListBox enhancements
2014-02-05 19:49 Arioch Note Added: 0020907
