Summary0005628: TJvDialButton not properly drawing ticks at runtime, works at designtime
DescriptionI'm using a TJvDialButton from JEDI and have a problem with it.
I set TickStyle to tsAuto, Min to 0 and max to 1000. Frequency is set to 100,
MinAngle and MaxAngle are at their default values of 300 and 3300.

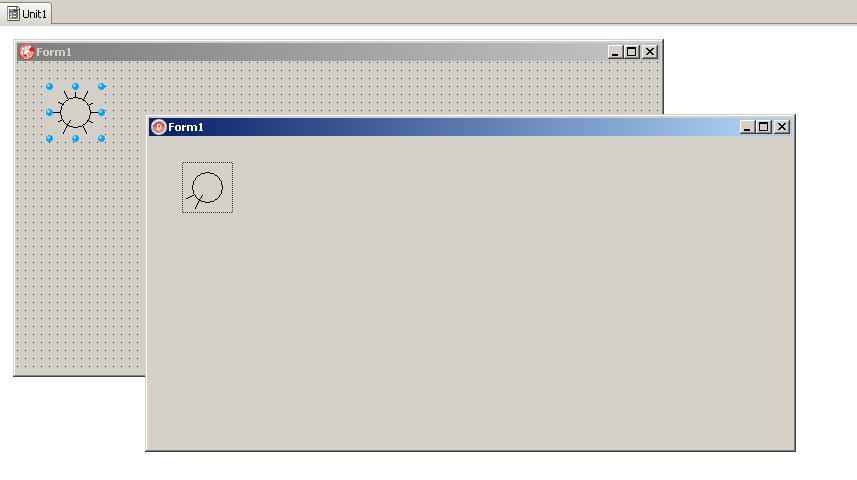

At designtime this all looks as I'd like it to look, at runtime I only get the first
two tick marks. The other ones are not painted. This is for 3 other such controls
the same, the only difference about them is a max of 2000 and a frequency of 200.
Additional InformationI'm using Delphi XE and JEDI 3.40.
TagsJVCL, TJvDialButton

Activities

2011-08-06 14:49




obones

2011-09-21 11:59

administrator   ~0018941

Please provide the zipped sources of a sample application showing this

2011-09-21 14:24



JediJvDialBug.zip (264,276 bytes)

mh

2011-09-21 14:26

reporter   ~0018956

Provided a D2009 built minimalistic sample application now showing this behavior. I hope somebody finds the time to look at this now.

obones

2011-09-21 14:49

administrator   ~0018963

Thanks

Arioch

2011-09-30 14:24

developer   ~0018993

in Delphi XE2 it also shows only two ticks in design-time

Arioch

2011-09-30 14:26

developer   ~0018994

but toggling TickStyle fixes this in designtime, strange :-)

Arioch

2011-09-30 15:42

developer   ~0018995

Last edited: 2011-10-02 15:29

Reason is clear, how to fix is remains to be decided.

  object JvDialButton1: TJvDialButton
...
    Frequency = 100
    Max = 1000
    Min = -30
    PointerSize = 40
    Position = 500
    Radius = 15
    TickStyle = tsAuto
    TabOrder = 0
  end

1) Ticks positions are not updated when Min, Max or Angle are changed.
2) Frequency is set from DFM before Min/Max
3) TickStyle is set from constructor to the same value, so it becomes NOP when reading component from DFM

Look my second attach. Move trackbar up/down one tick after another - you'd see that ticks only adjusted on Freq change.

Proper thing to do would be reworking the component. It seems that when Min/Max/Freq/Angle would be changed in a row, it should postpone Tick re-calculation until required after last change.

So something like FTicksInvalid/NeedTicks() pair is to be used.

Quick fix though would probably be

procedure TJvCustomDialButton.SetParams(APosition, AMin, AMax: Integer);
....
 // If redrawing flagged, cause a redraw, redoing the bitmap too.
  if Invalid then
  begin
    FBitmapInvalid := True;
    Changed := True;
+++++ ClearTicks;
+++++ SetTicks(FTickStyle);
    Invalidate;
  end;
...

There also are methods like SetMaxAngle and properties like MinAngle - i did not checked if they can corrupt Ticks similar way. Above is quick dirty fix for topicstarter problem.

PS: I would also say, that Angles are measured in deci-degrees (3600 for ffull circle) - and that SHOULD be documented, otherwise it is confusing to see angles like 1843 - and what does this mean ?

2011-09-30 15:42



JediJvDialBug_QuickDirtyFix.zip (1,738,491 bytes)

obones

2012-02-23 13:47

administrator   ~0019517

This is now fixed in SVN
