2004-03-04 05:33
|
|
|
I think it will be difficult fixing that since the control is a wrapper for a Windows control. |
|
|

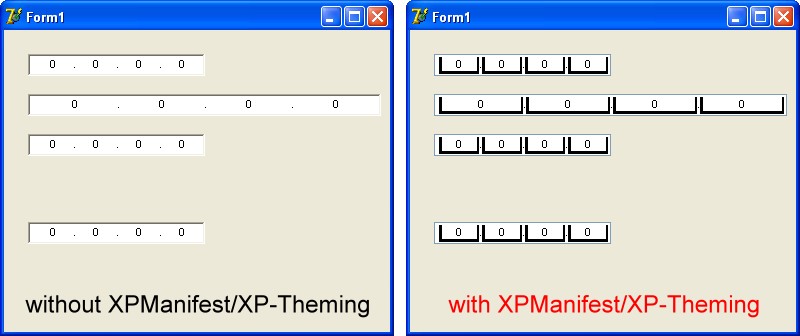

The strange thing is that windows xp uses this control for the TCP/IP settings also, but why is there not this problem? (see network settings of windows xp) |
|
|
I'm not so sure the control used in XP is the same as the one we have wrapped... |
|
|
mmhh... Do you see another way to check out, if there is a possibility to use maybe another wrapper for windows xp? This topic/component is very important for me. Maybe we get a great hint on torry delphi pages to point out this behavior? Thanks in advance for you help! |
|
|
>Do you see another way to check out, if there is a possibility to use maybe >another wrapper for windows xp? I checked MSDN but couldn't find any XP specific info |
|
|
Ok... i tried to analyze this behavior. It's really the same class which is used for the TJvIPAddress component called "SysIPAddress32", also the important window style parameters are the same. When you change the font property in the TJvIPAddress component then the thick border around the child classes TEdit changes. The following code works perfect also with the XPManifest. Maybe you can check out the differences between the direct CreateWindowEx API call and the TJvIPAddress component. // --- Microsoft® Internet Explorer Version 4.0 introduces the IP address control, a new control similar to an edit control that allows the user to enter a numeric address in Internet protocol (IP) format. This format consists of four three-digit fields. Each field is treated individually; the field numbers are zero-based and proceed from left to right as shown in this figure. Further informations http://msdn.microsoft.com/library/en-us/shellcc/platform/commctls/ipaddress/ipaddress.asp } unit Unit1; interface uses Windows, Messages, Classes, Forms, Controls, StdCtrls, ExtCtrls; type TForm1 = class(TForm) IPAddress: TBevel; SetIP: TButton; ClearIP: TButton; procedure FormCreate(Sender: TObject); procedure SetIPClick(Sender: TObject); procedure ClearIPClick(Sender: TObject); private FIPAddress: Longint; HIPAddress: HWND; PrevWndProc: TWndMethod; procedure NewWindowProc(var Message: TMessage); public end; var Form1: TForm1; implementation {$R *.dfm} uses CommCtrl; const IP_ADDRESS_ID: Longword = $0100; procedure TForm1.FormCreate(Sender: TObject); var lpInitCtrls: TInitCommonControlsEx; begin lpInitCtrls.dwSize := SizeOf(TInitCommonControlsEx); lpInitCtrls.dwICC := ICC_INTERNET_CLASSES; if InitCommonControlsEx(lpInitCtrls) then begin PrevWndProc := WindowProc; WindowProc := NewWindowProc; HIPAddress := CreateWindowEx(WS_EX_LEFT, WC_IPADDRESS, nil, WS_CHILD + WS_VISIBLE + WS_BORDER + WS_TABSTOP, IPAddress.Left, IPAddress.Top, IPAddress.Width, IPAddress.Height, Handle, IP_ADDRESS_ID, HInstance, nil); SendMessage(HIPAddress, IPM_SETFOCUS, 0, 0); end; end; procedure TForm1.NewWindowProc(var Message: TMessage); var nField: longint; begin case Message.Msg of WM_NOTIFY: begin if PNMHDR(Ptr(Message.lParam)).idFrom = IP_ADDRESS_ID then begin case PNMIPAddress(ptr(Message.lParam)).hdr.code of IPN_FIELDCHANGED: begin if SendMessage(HIPAddress, IPM_ISBLANK, 0, 0) = 0 then SendMessage(HIPAddress, IPM_GETADDRESS, 0, lParam(LPDWORD(@FIPAddress))); end; end; end; end; WM_COMMAND: begin if Message.WParamLo = IP_ADDRESS_ID then case Message.WParamHi of EN_SETFOCUS: begin nField := SendMessage(HIPAddress, IPM_GETADDRESS, 0, lParam(LPDWORD(@FIPAddress))); if nField = 4 then nField := 0; SendMessage(HIPAddress, IPM_SETFOCUS, wParam(nField), 0); end; EN_KILLFOCUS: begin if SendMessage(HIPAddress, IPM_ISBLANK, 0, 0) = 0 then SendMessage(HIPAddress, IPM_GETADDRESS, 0, lParam(LPDWORD(@FIPAddress))); end; EN_CHANGE: begin end; end; end; end; if Assigned(PrevWndProc) then PrevWndproc(Message); end; procedure TForm1.SetIPClick(Sender: TObject); begin FIPAddress := MAKEIPADDRESS(127, 0, 0, 1); SendMessage(HIPAddress, IPM_SETADDRESS, 0, lParam(DWORD(FIPAddress))); end; procedure TForm1.ClearIPClick(Sender: TObject); begin SendMessage(HIPAddress, IPM_CLEARADDRESS, 0, 0); end; end. // --- Thanks again in advance for your great support/help! edited on: 03-04-04 12:02 |
|
|
The only really big difference I can see is in CreateParams, so try changing it to the following and see if that helps (I don't have XP, so I can't test myself): procedure TJvIPAddress.CreateParams(var Params: TCreateParams); const cTabStops: array[boolean] of Cardinal = (0, WS_TABSTOP); begin InitCommonControl(ICC_INTERNET_CLASSES); inherited CreateParams(Params); CreateSubClass(Params, WC_IPADDRESS); with Params do begin Style := WS_CHILD or WS_VISIBLE or WS_BORDER or cTabStops[TabStop]; WindowClass.style := WindowClass.style and not (CS_HREDRAW or CS_VREDRAW); end; end; |
|
|
Yeah... Great! It seems that i've solved the problem. The TJvIPAddress based on the TWinControl class and this seems wrong. The TJvIPAddress must based on the TCustomEdit class and then all problems are gone. I don't know how you could change this with the TJvIPAddress component which based on the subclass TJvWinControl... Exists a TJvCustomEdit class? BTW: I have now signed up for a issue tracker account. No anonymous account anymore :-) Thanks in advance for you great support/help! edited on: 03-04-04 13:51 |
|
|
Do you mean it works with the new CreateParams, new CreateParams + deriving from CustomEdit or old CreateParams + deriving from CustomEdit? |
|
|
New CreateParams but without window style WS_BORDER and only if it's derived from TCustomEdit! Don't ask me why... But it seems to work only in this combination. |
|
2004-03-04 15:30
|
JvComCtrls.zip (12,849 bytes) |
|
|
Could you try the attached JvComCtrls file and see if it works on XP both with and without theming? Note: You might have to rebuild the JvCore package as well |
|
2004-03-05 05:16
|
JvComCtrls.pas (58,035 bytes) |
|
|
Hello Peter3, as so often in our life it was completely something else than assumed. I've uploaded a new version of TJvComCtrls.pas which based on the latest CVS file. The main problem was the WM_CTLCOLOREDIT Message! :-) It would be great if we could publish the color property and we should do some changes when the TJvIPAddress is in design state, because it's really hard to move this control over a form in delphi form designer. It always in edit state. And another bug: e. g. when you double click on the second field of the ipaddress then the first field only will be selected, but it should select the second field. Thanks in advance for your help! Kai |
|
|
> It would be great if we could publish the color property I tried this and it works but if I change the color, only the color of the internal edits are changed, not the "border" around them. You can try it yourself and you'll see what I mean. > it's really hard to move this control over a form in delphi form designer This has already been fixed by Andreas but you may have to rebuld the package again to make it available. |
|
|
Hello again, i don't know how we could paint the full background. I tried WMERASEBKGRND and WMPAINT message which works fine, but the dots between the internal edit controls gets lost. :-( Maybe we should append this as an known issue? But the other reported error should be really fixed: "e. g. when you double click on the second part of the IP-Address then only the first part will be selected, but it should select in this case the second part and so on" |
|
|
>. when you double click on the second part [...] Already fixed that one :) |
|
|
When was this bug corrected and i which unit? I rebuild all packages and units, but it doesn't work. The design time bug fix from Andreas works fine. (also i have added the \run path to the library paths) I think we should close this drawing bug issue, because it's solved with the WM_CTLCOLOREDIT Message. Maybe you could add these changes to the CVS? Have you any ideas/extensions for the WM_PAINT oder WM_ERASEBKGRND messages? |
|
|
I haven't added the dblclick fix to CVS yet, but you only need to remove the WM_LBUTTONCLICK et al handler (the Perform call) to make it work. I haven't noticed any side-effects of this. I'll update CVS with the changes so far and also add a note about the Color problem. I'm also going to publish the Text, Color, ParentColor properties. I'm closing this issue now and we can open a new one if we find additional problems. Thanks for all your help and ideas in fixing this problem. |
